Product Description

Product Attributes

Model No.: THC-244

Brand: Toncom

Appearance Customization: Customizable length, silk printing, color (RAL card optional), etc.

Function Expansion: Can provide customized functions such as intelligent station announcement, voice broadcast, charging seats, monitoring system, solar energy system, etc.

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Toncom Company Introduction



Product Description

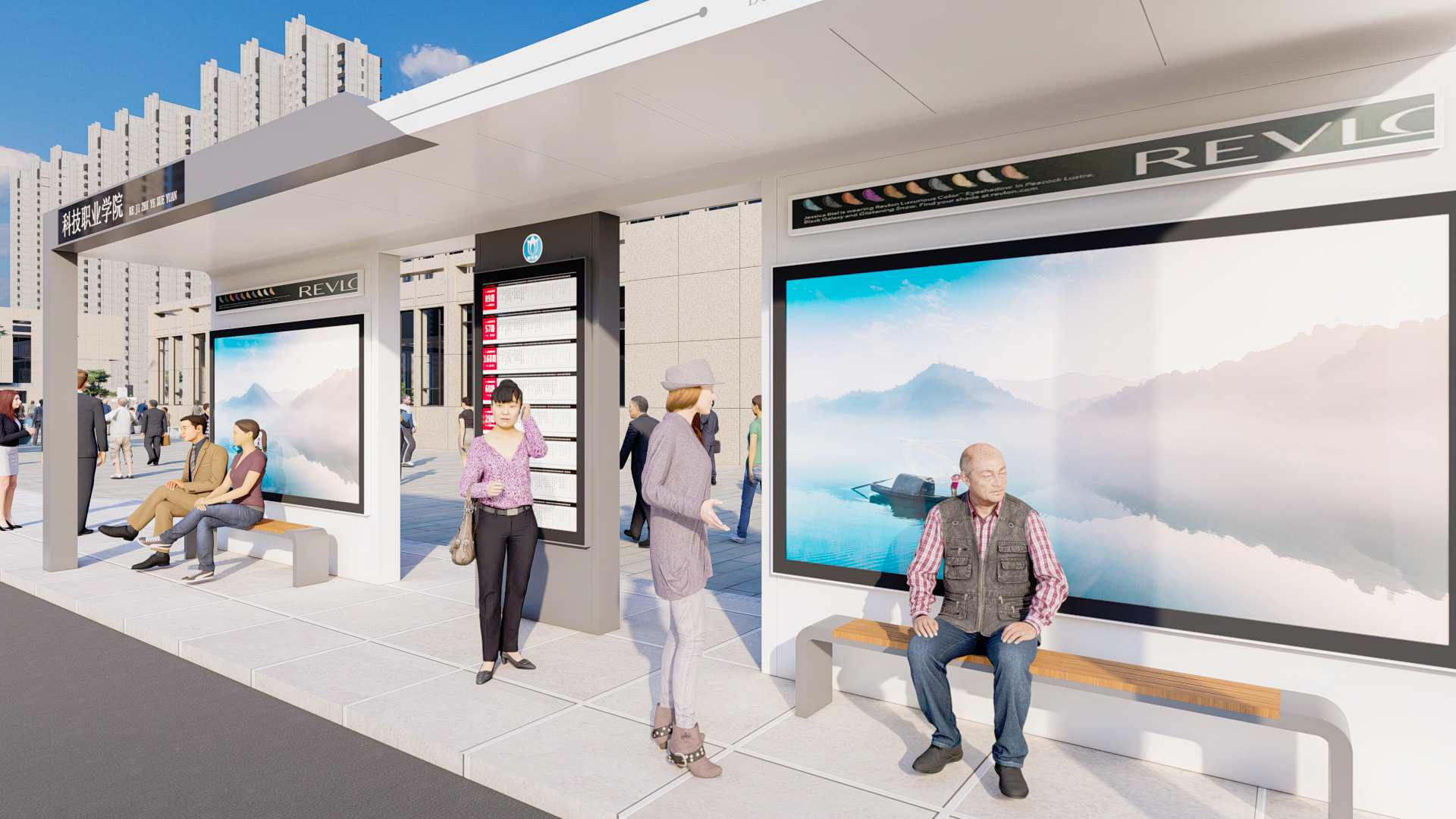

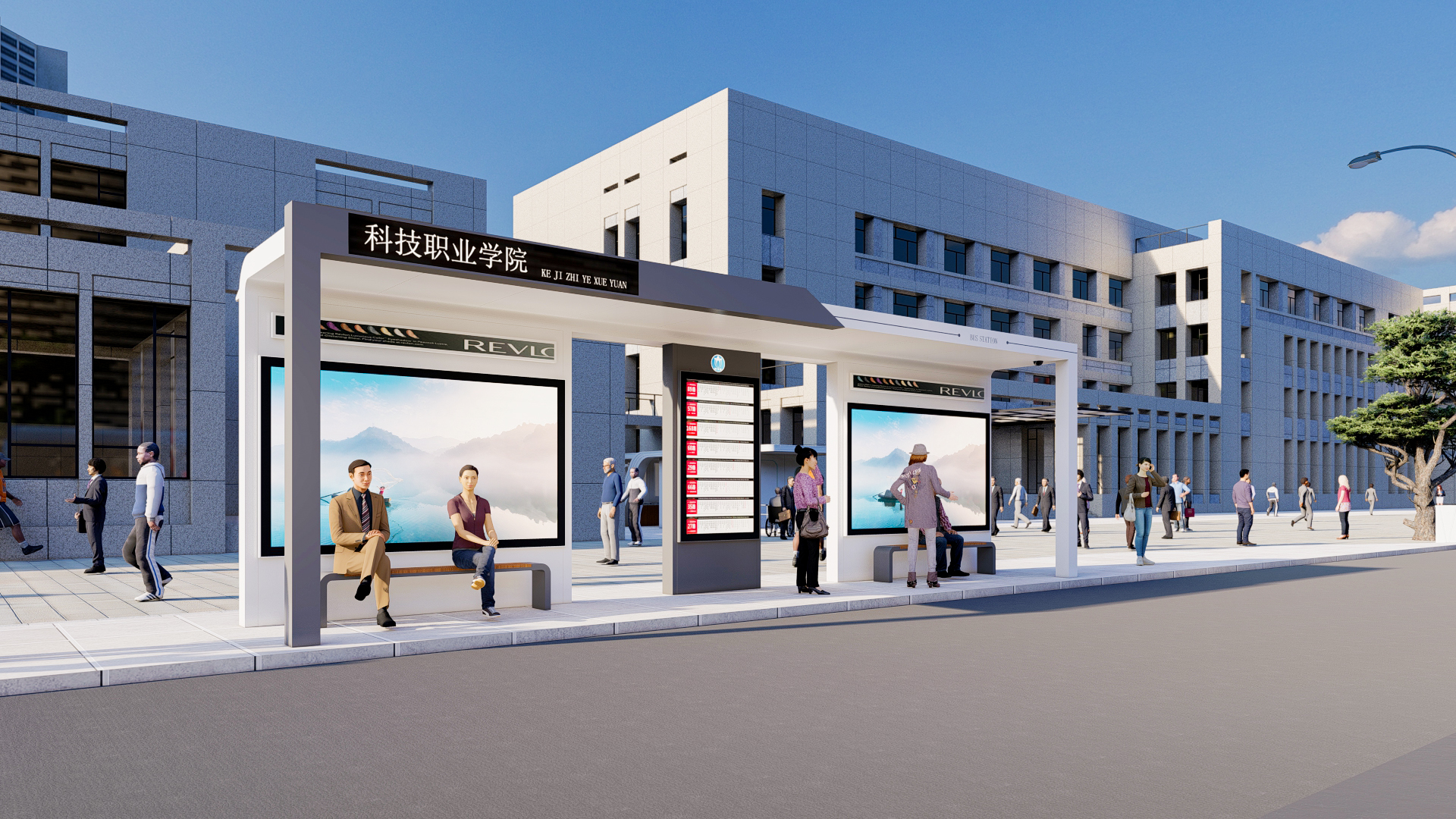

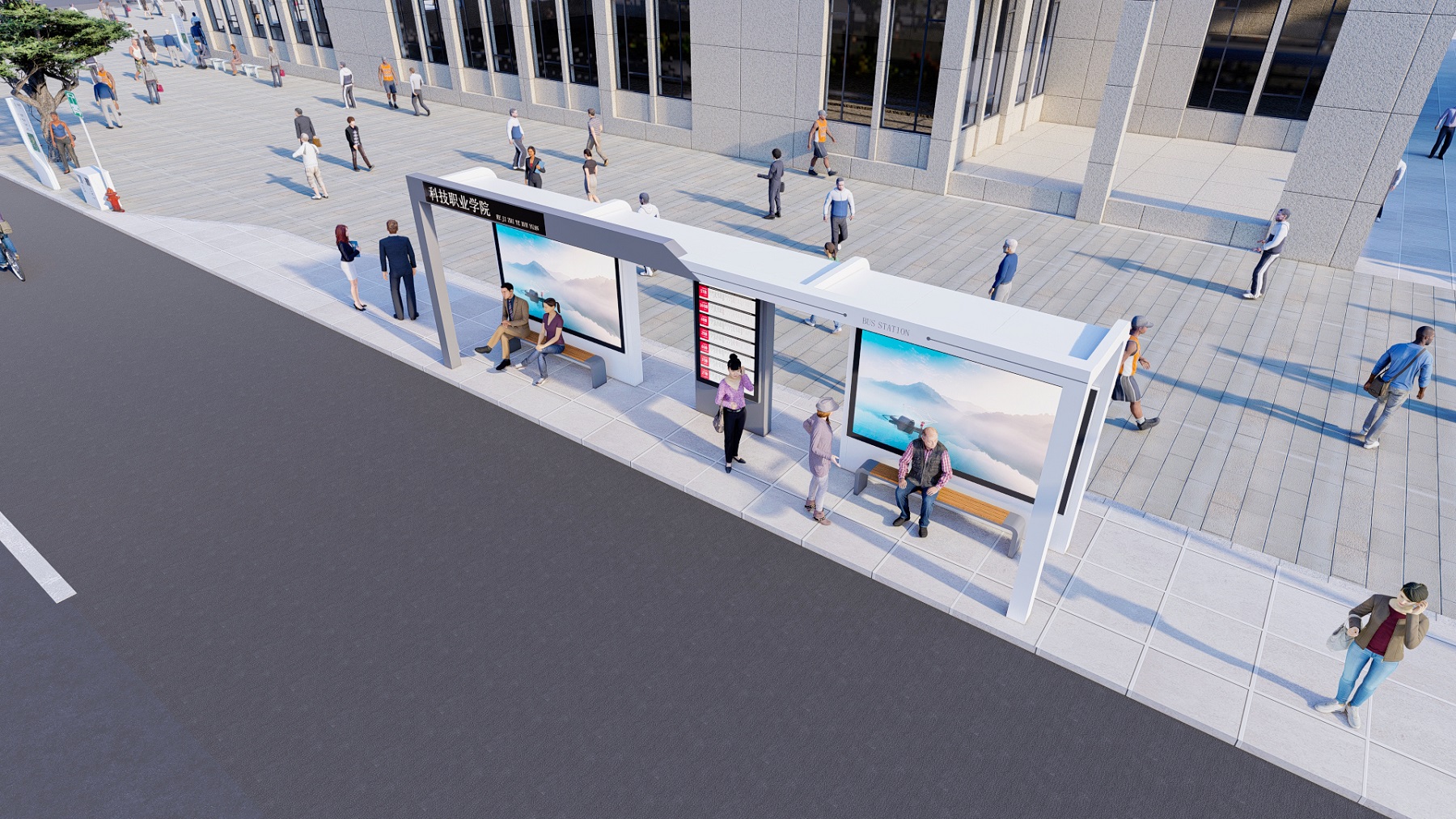

1. Design Overview

This Bus Shelter adopts a minimalist design language, featuring neat and tough overall lines with a transparent structure. It adopts a "double-unit" layout (i.e., two waiting areas on the left and right + a central information pillar) with a total length of approximately 10 meters, which can meet the needs of large passenger flow. Its classic and highly recognizable color scheme integrates perfectly into the modern urban streetscape.

Style Positioning: Modern, business-oriented, minimalist, and tech-savvy.

Color Scheme: Classic contrast design of deep and light colors.

Main Color (White): Used for the ceiling and the inner side of columns to enhance visual brightness.

Secondary Color (Dark Gray): Applied to the outer cladding of columns, seats, and light box frames for dirt resistance and a calm appearance.

2. Core Materials & Craftsmanship

The product is made of carefully selected materials with a focus on weather resistance and safety:

Main Columns:

Constructed with 100 x 200 x 3 mm stainless steel columns, which are sturdy, durable, and have strong wind resistance.

Ceiling Structure:

Formed by bending galvanized steel plates, with a built-in light box. The front is equipped with 3mm acrylic three-dimensional characters (e.g., "BUS STATION") and an internal lighting system for clear guidance at night.

Advertising Light Boxes:

Box Body: Aluminum alloy profiles, lightweight and rust-proof.

Panel: 8mm black-edged silk-screen tempered glass, featuring high light transmittance, impact resistance, high safety, and a high-end visual effect.

Backboard: The main frame is made of 2mm stainless steel plate.

Seat System:

Seat Surface: WPC (Wood-Plastic Composite) material, which has a wood-like texture but is more corrosion-resistant, waterproof, and insect-proof than solid wood, with a warm touch.

Support: 30 x 30 x 2mm stainless steel tubes + 1.5mm stainless steel plates for stable structure.

Solar energy system (optional)

3. Key Features

This bus shelter integrates functionality and commercial value:

Dual Large-Screen Advertising Spaces:

Each side is equipped with a large-format scrolling/static light box advertising space, which not only provides reading content for citizens but also offers an excellent commercial advertising display window for operators.

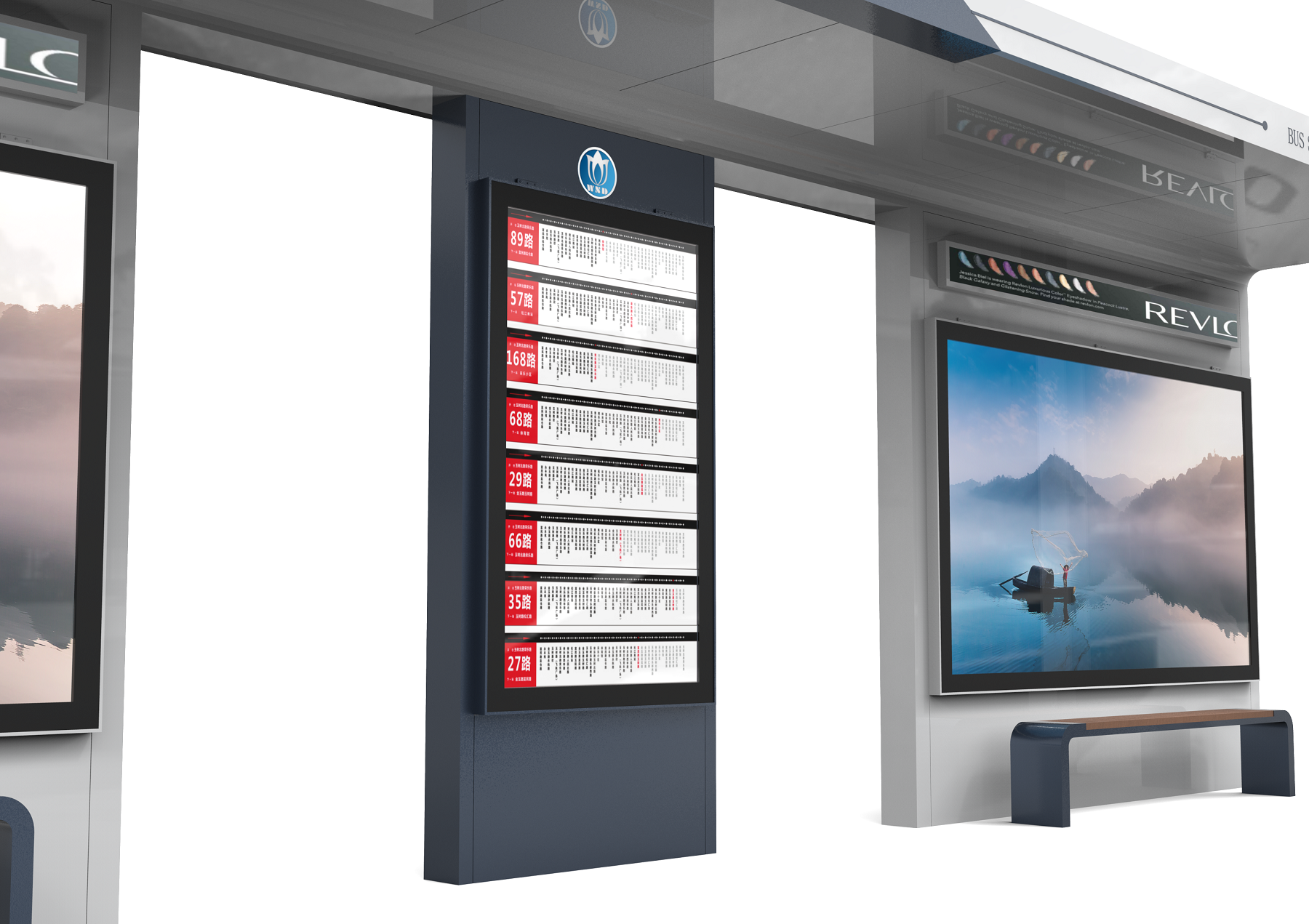

Central Intelligent Information Pillar:

An independent pillar located in the center of the bus shelter, integrating route indication functions:

Supports route sign display for multiple lines (such as the red digital numbers shown in the figure).

Reserved space can be upgraded to an LCD Intelligent Electronic Stop Sign to display real-time vehicle arrival information.

Equipped with a LOGO light box on the top to enhance brand or urban image.

Humanized Waiting Space:

The spacious ceiling provides good sunshade and rain shelter; the independent seat design on both sides facilitates passenger rest while ensuring smooth moving lines.

Night Lighting:

High-brightness LED light sources are installed at the bottom of the ceiling, in advertising light boxes, and on stop signs to ensure safety and visibility for waiting passengers at night.

4. Application Scenarios

This bus shelter has strong environmental adaptability:

Urban Main Roads: The 10-meter length is suitable for stops on wide main roads with medium to large passenger flow.

CBD/Commercial Centers: Its modern and minimalist appearance can coexist harmoniously with surrounding high-rise buildings.

Higher Education Parks/Science and Technology Parks: It conforms to the technological and rigorous regional temperament.

Appearance Customization: Customizable length, silk printing, color (RAL card optional), etc.

Function Expansion: Can provide customized functions such as intelligent station announcement, voice broadcast, charging seats, monitoring system, solar energy system, etc.

MOQ：1

International Certification：CE/UL/RoHS

Production Cycle：45-60 days

Warranty Period：3-year warranty for shell components, 1-year warranty for electrical components

5. Summary

This 10-meter double-unit bus shelter is an ideal choice for the upgrading of urban public transport facilities. It not only meets citizens' basic needs of "sheltering from wind and rain" while waiting for buses, but also ensures long service life and low maintenance costs through the combination of stainless steel and tempered glass. Meanwhile, it reflects the emphasis on humanistic care through details such as WPC seats.
