Wholesale 13.5-meter green technology smart bus shelter

Wholesale 13.5-meter green technology smart bus shelter

Get Latest Price

Payment Type:	T/T
Min. Order:	1
Transportation:	Ocean,Land
Port:	ningbo

Contact Now

Product Description

Product Attributes

Packaging & Delivery

Product Description

Product Attributes

Model No.: THC-243

Brand: Toncom

Packaging & Delivery

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

1. Overall Design Concept

This Bus Shelter is specially built for modern smart cities, with "green, technology, and intelligence" as its core design language.

Appearance & Shape:

It adopts a futuristic streamlined semi-enclosed structure with tough yet smooth lines. The main side elevation features a unique "L"-shaped floor-standing support design, paired with hollow dynamic guide arrows, delivering a strong visual impact.

Color Scheme:

The overall color palette is dominated by light gray and dark gray/blue-gray, which is stable and dirt-resistant. High-brightness LED light strips in cyan/tech blue are used as accents to create a strong technological atmosphere with extremely high night recognition.

Spatial Layout:

The large-span 13.5-meter design ensures a transparent and open space, meeting the waiting needs of high-traffic stations while avoiding a visually oppressive feel.

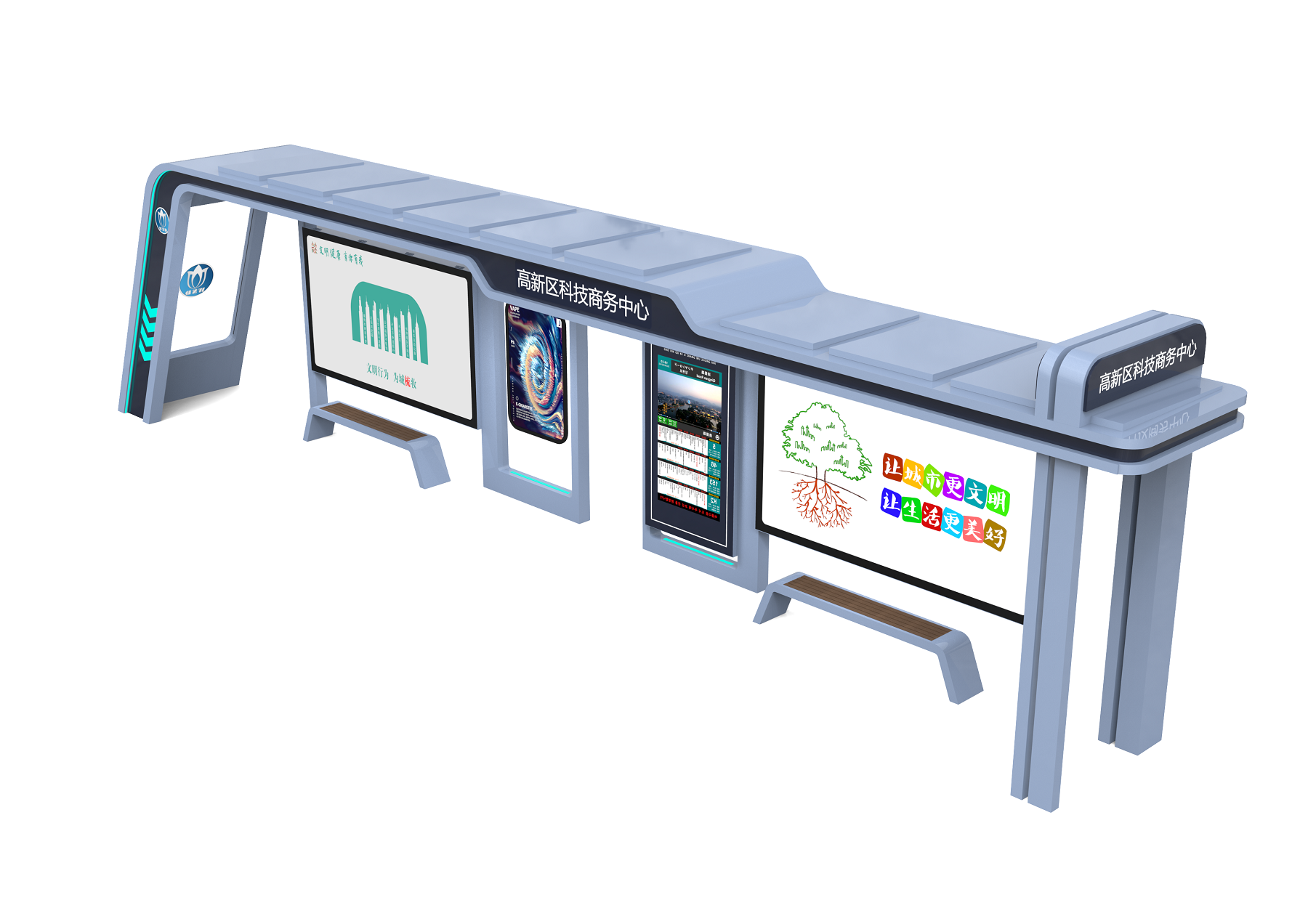

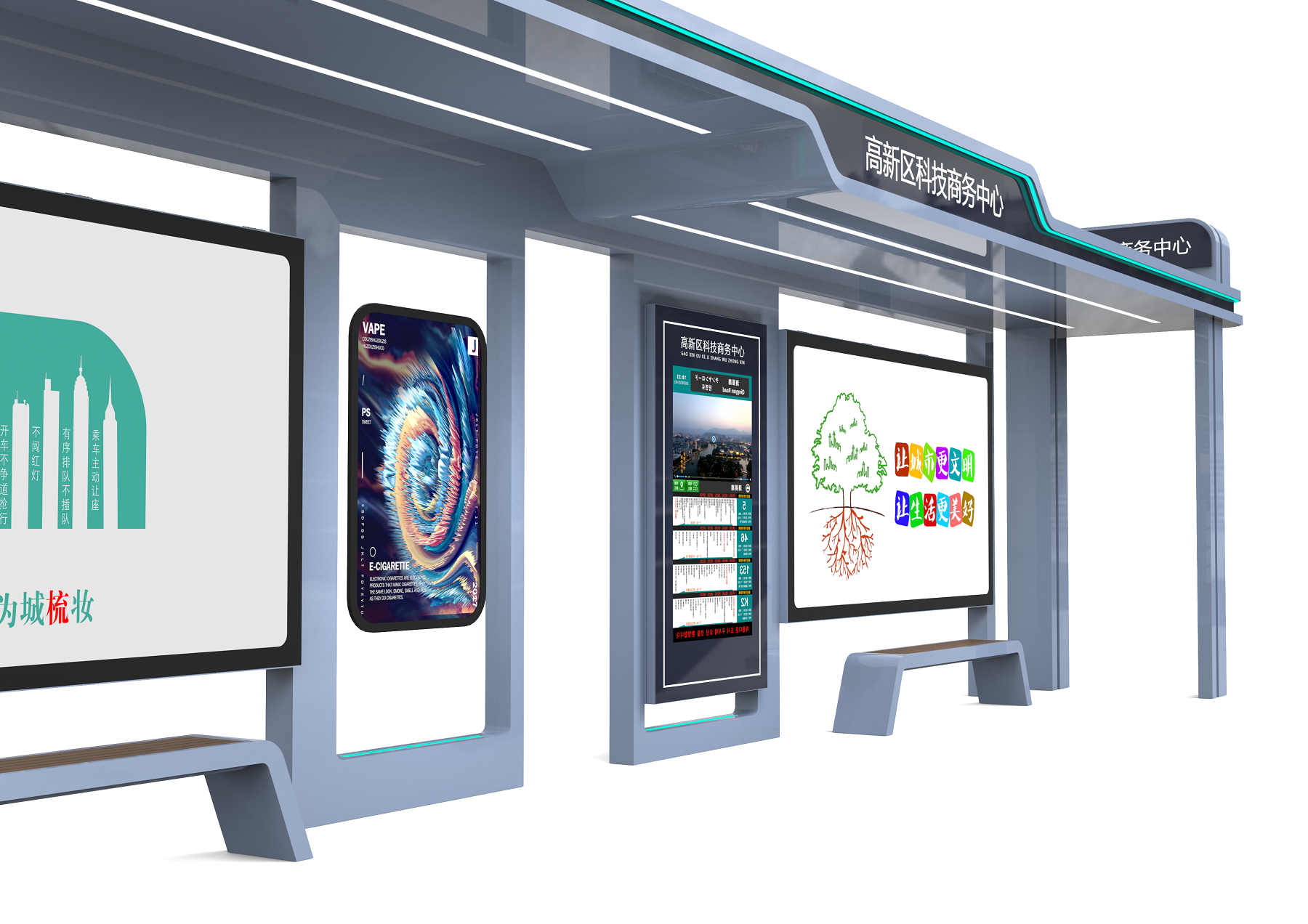

13.5-meter green technology smart bus shelter

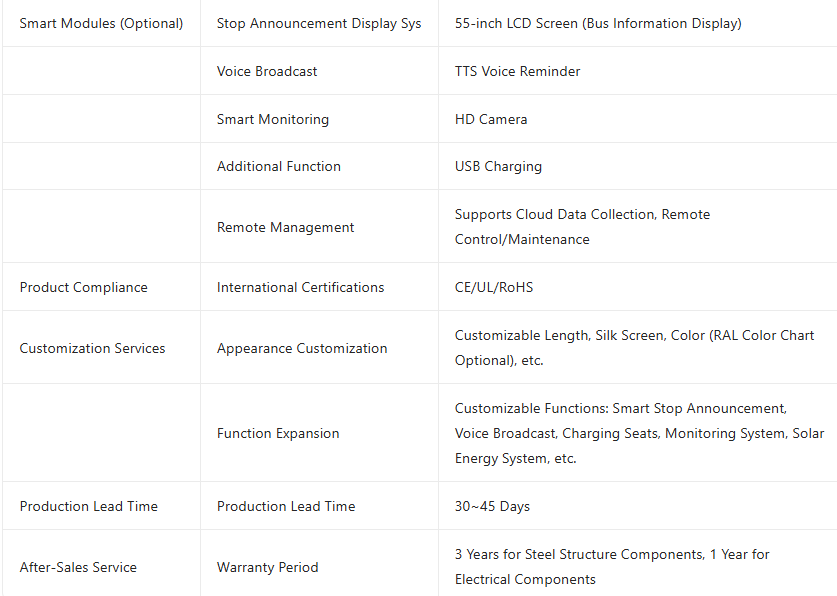

2. Functional Configuration & Intelligence

Integrated with multiple smart transportation functions, it realizes the leap from a "single rain shelter" to a "smart urban furniture":

Smart Electronic Stop Board:

Equipped with a vertical LCD multimedia display, it can real-time show bus arrival information, route inquiries, weather forecasts, and public welfare advertisement videos.

Multimedia Advertising System:

Large-size Light Boxes: Large static/scrolling advertising light boxes are installed on both sides, featuring a wide visual area and excellent publicity effects.

Auxiliary Display Positions: Special display windows are set up for posting paper route maps or public welfare posters.

Safety & Monitoring:

High-definition surveillance cameras are integrated on the top to ensure passenger safety and facilitate facility maintenance monitoring.

Ambient Lighting:

LED ambient light strips are embedded around the ceiling and on the side elevation, which not only enhance aesthetics but also provide auxiliary night lighting and improve the grade of urban night scenes.

3. Materials & Craftsmanship Details

High-standard industrial-grade materials are adopted to ensure durability and safety:

Ceiling Structure:

1.5mm stainless steel plate folded cover is used for stable structure and rust resistance.

An LED lighting system is built into the perimeter of the roof eave for uniform and soft light.

Columns & Frame:

The side elevation features laser-cut hollow lighting effects, with acrylic panels flush with the metal surface, reflecting exquisite craftsmanship.

The main frame consists of a 2mm stainless steel main frame and galvanized steel pipe lining, boasting strong wind and earthquake resistance.

Window System:

The advertising light box windows use 8mm high-temperature ink tempered glass, which is safe, explosion-proof, and has high light transmittance.

The picture frames are made of 6063 aluminum profiles for easy opening; internally equipped with gas spring supports and door anti-falling devices, they facilitate maintenance and picture replacement.

Seat Design:

WPC (Wood-Plastic Composite) Seat Surface: Offers a gentle touch, is corrosion and moisture resistant, and remains warm in winter and cool in summer.

2mm Stainless Steel Bent Leg Supports: Features a minimalist shape and strong load-bearing capacity.

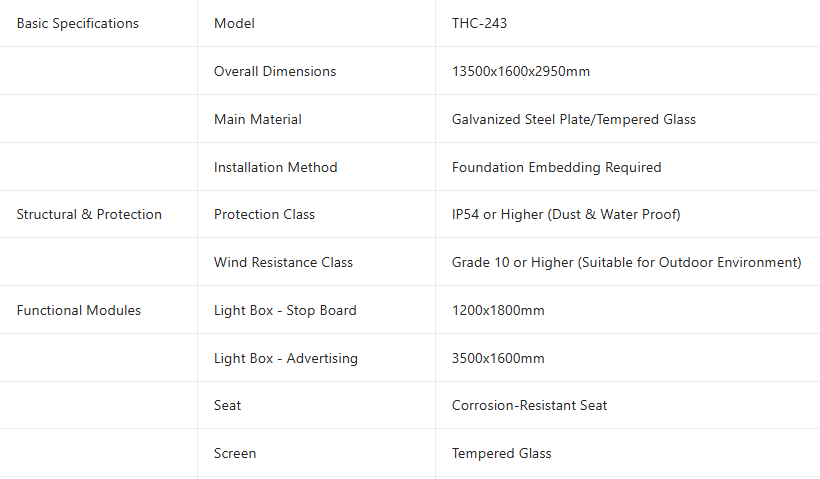

4. Specifications Summary

Total Length: Approximately 13.5 meters

Main Materials: Galvanized steel pipe frame, stainless steel plate finish, tempered glass, aluminum profiles

Surface Treatment: High-temperature electrostatic spraying / fluorocarbon paint spraying (with strong weather resistance and UV protection)

5. Applications

High-tech Industrial Parks: Aligns with the modern and intelligent positioning of the parks

Urban Main Roads: Enhances the landscape image of urban streets

CBD Business Centers: Blends with the modern style of surrounding high-rise buildings

As a leading manufacturer of smart urban infrastructure in China, we provide comprehensive solutions covering three key areas:

Intelligent Traffic Facilities: Bus Shelter, Guardrails

Commercial Service Facilities: Outdoor Dining Car, Kiosks , Public Seating

Urban Sanitation Facilities: Public Toilets, Trash Bins

Contact us, and we will customize a suitable solution for you based on your specific needs (such as budget, functions, and design style).
