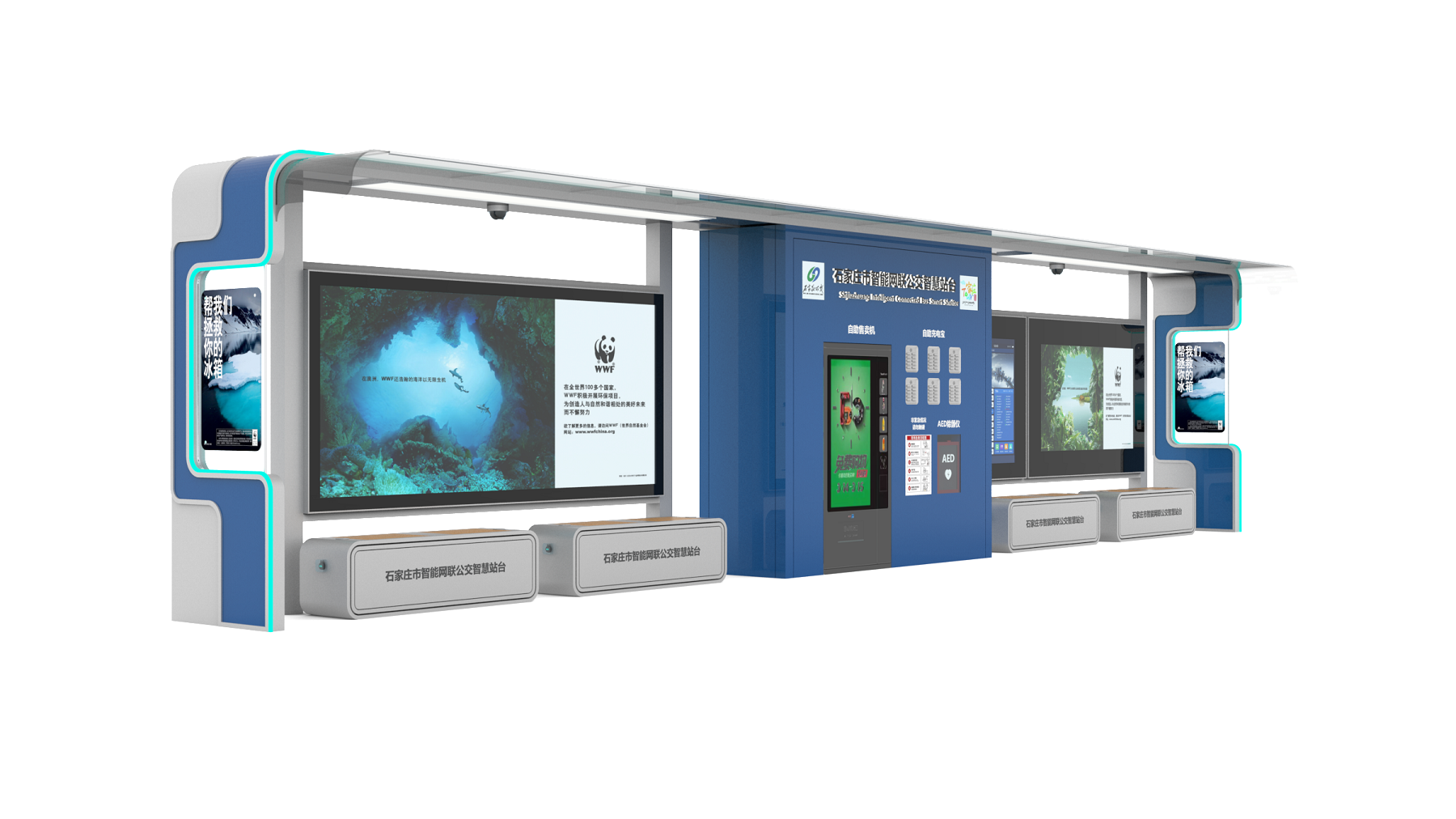

Urban Intelligent Connected Multi-Functional Smart Bus Shelter

Urban Intelligent Connected Multi-Functional Smart Bus Shelter



This is an urban intelligent connected smart bus shelter integrating modern design, intelligent interaction, and convenient public services.This smart bus shelter breaks the limitations of the traditional single function. Through the "Internet + Public Transport" model, it perfectly integrates 5G communication, big data interaction, convenient services (charging, retail), and life safety guarantee (AED). It is an ideal infrastructure for building a new type of smart city and improving the image of public transportation.







It adopts a design language that combines minimalism with futuristic technology. The overall structure features a streamlined frame with smooth and rounded lines, abandoning the angularity of traditional bus shelters, and presenting a more approachable and modern visual effect.



The main color palette consists of tech blue and pure white, accented with metallic silver-gray. Cyan-blue LED ambient light strips are embedded along the edges, which not only provide contour lighting at night but also enhance the product’s technological attributes and sense of being an urban landmark.

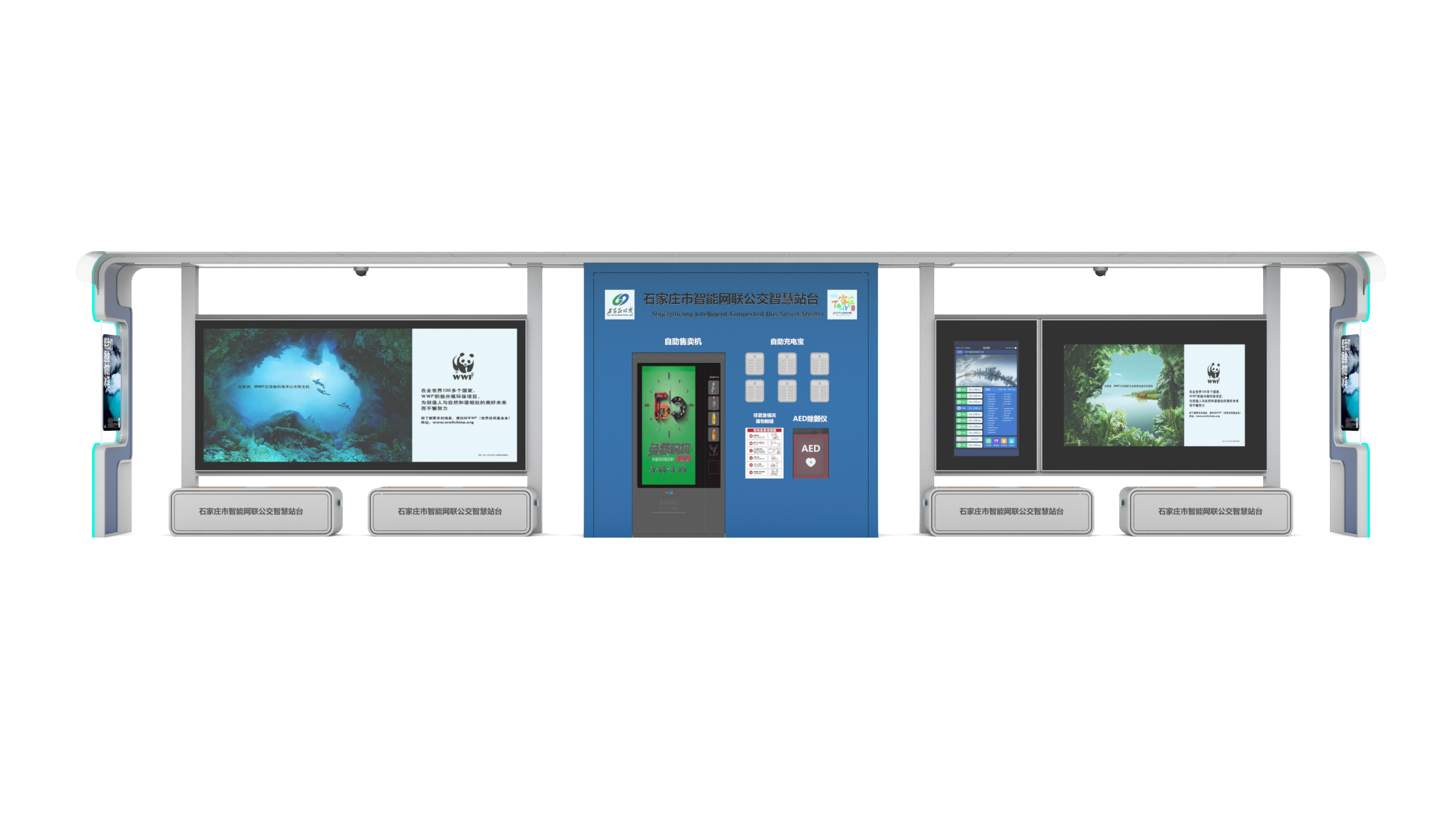

It adopts a symmetrical or modular layout, with a functional core area in the middle, waiting and resting areas as well as information display areas on both sides, and a flat roof design that ensures good light transmission while shielding passengers from rain and sunlight.

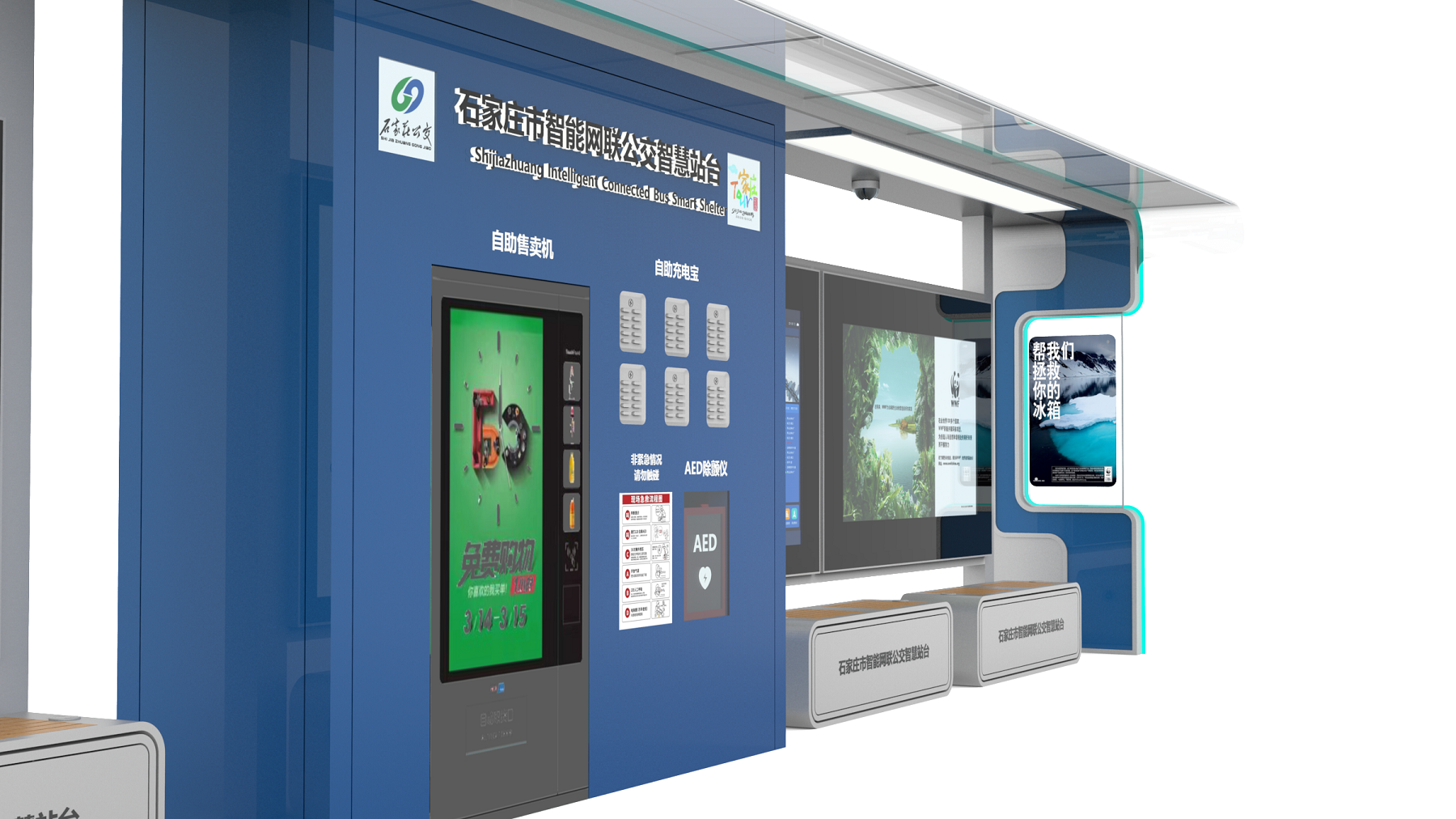

The biggest highlight of this bus shelter lies in its highly integrated intelligent devices. It is not just a place for waiting for buses, but also a miniature urban service station:



Smart Electronic Bus Stop Board: Equipped with a large vertical touch screen, it can display real-time vehicle arrival information, bus route maps, weather forecasts, time, and municipal announcements, and supports interactive inquiries for passengers.

Multimedia Advertising Screens: Large high-definition LCD screens (horizontal and vertical) are embedded on both sides and the back, used for playing public welfare advertisements or commercial information with clear images and high color reproduction, improving commercial value.



Automatic Vending Machine: An embedded vending system with a transparent touch selection screen, providing instant retail services such as beverages and snacks.

Shared Power Bank Service: Equipped with multiple slots for returning/borrowing shared power banks, solving citizens’ "battery anxiety" during travel.

AED (Automated External Defibrillator): An AED first-aid kit is placed in a prominent position, providing "golden rescue" support for patients with sudden cardiac arrest, reflecting the city’s humanistic care and safety guarantee.









Multiple high-definition dome cameras are hung on the top, covering the bus shelter and surrounding areas, realizing 24/7 security monitoring to protect passengers’ safety, and can be connected to the urban security network.

Strip-shaped LED lights are installed on the top, combined with ambient light strips, to ensure the waiting environment is bright and visible at night.





Modular Seats: Equipped with independent benches with stable bases. The seat surface is made of anti-corrosion wood, which is comfortable to touch, not cold in winter, and does not accumulate heat in summer.

Weather-Resistant Materials: The overall structure is expected to adopt galvanized steel plates with electrostatic spray coating on the surface, which has excellent anti-corrosion and anti-oxidation performance and can adapt to various harsh outdoor weather conditions.





Smart city demonstration zones

Urban central business districts (CBDs)

High-tech development zones

Major traffic arteries and hub stations
