Customizable Smart bus shelter Southeast Asia for Tropical climate

Customizable Smart bus shelter Southeast Asia for Tropical climate

Get Latest Price

Payment Type:	T/T,L/C
Incoterm:	FOB
Min. Order:	1 Set/Sets
Transportation:	Ocean,Land
Port:	n,i,n

Contact Now

Product Description

Product Attributes

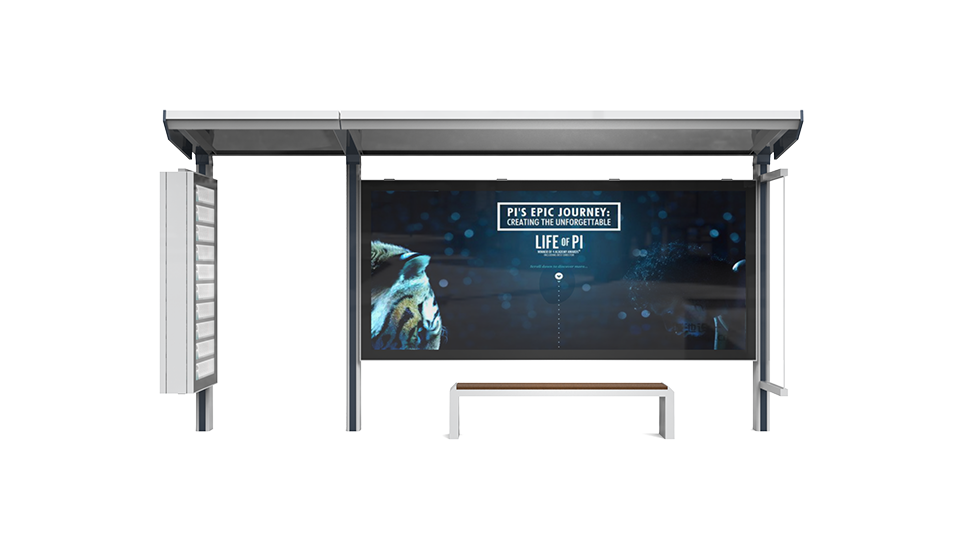

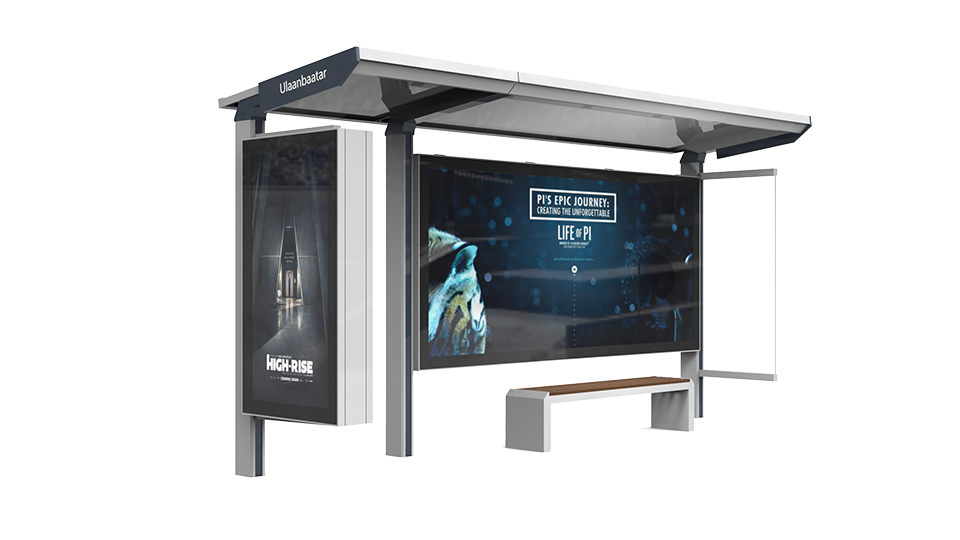

Model No.: THC-76

Brand: Toncom

Place Of Origin: China

International Certification: CE/UL/RoHS

Main Material: Galvanized Steel Plate/Tempered Glass

Overall Dimensions: 6460*1750*2700mm

Installation Method: Foundation Embedding Required

Protection Grade: IP54 and above (Dustproof and Waterproof)

Wind Resistance Grade: Grade 10 and above (Suitable for Outdoor Environment)

Seat: Anticorrosive Wooden Chair

Personalized Services: Appearance Customization: Customizable Length, Silk Screen Printing, Color (RAL Color Card Optional), etc., Function Expansion: Can Provide Customization of Intelligent Stop Announcement, Voice Announcement, Charging Seat, Monitoring System, Solar Energy System, etc.

Production Cycle: 30~45 Days

Warranty Period: 3 Years for Steel Structure Components, 1 Year for Electrical Components

Light Box: Advertising Light Box: 3500*1600mm Stop Sign Light Box: 1200*1800mm

Packaging & Delivery

Selling Units

Set/Sets

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Toncom Smart Bus Shelter - Solar-Powered Solution for Southeast Asian B2B Buyers

1. Why Choose Us?

Toncom Smart Bus Shelter (Model: THC-76) is a tailor-made outdoor public transit facility for Southeast Asia’s unique tropical climate and urban-rural development needs. The Digital Bus Shelter integrates advertising, passenger waiting, and smart functions. It enhances public transit experiences while cutting operational costs for ASEAN buyers.

What makes us outperform local Southeast Asian competitors:

(1) Solar-Powered Off-Grid Innovation: Clean renewable energy solution eliminates reliance on unstable grid power. This is critical for rural areas like Bali, Cebu, and Johor.

(2) Tropical Climate Durability: IP54+ protection rating and 10+ wind resistance grade ensure stable operation. It withstands tropical rain, high humidity, and coastal salt spray in Penang, Manila, and the Philippines.

(3) Global Compliance: CE/UL/RoHS certified

(4) Cost-Effective Quick Upgrade: Compact solar solutions enable fast smart transformation. No large-scale infrastructure renovation is needed, cutting upgrade costs by 30%+ for Jakarta, Bangkok, and Ho Chi Minh City projects. Annual electricity cost saving per shelter: $500-$800 for ASEAN buyers; investment payback period: 18-24 months.

2. Application Scenarios & Pain Point Solutions

Application Scenarios	Pain Points in Southeast Asia	Our Solutions	Achievements
Urban Main Roads (e.g., Jakarta, Bangkok, Ho Chi Minh City, Surabaya)	High electricity costs; need to optimize advertising revenue; dense foot traffic	Integrated 3500×1600mm high-brightness advertising light box + tropical-optimized solar system + remote energy management	25% lower operational costs; 40% higher advertising exposure; 35% improved passenger satisfaction; 60% better flow management
Rural/Suburban Areas (e.g., Bali, Cebu, Johor, Lampung)	Poor grid coverage; no power for smart facilities; uneven terrain	Off-grid solar solution (23% conversion efficiency panels) + customizable storage batteries + foundation embedding installation	Stable operation without external power; equal smart transit services; 40% extended equipment lifespan
Tourist Destinations (e.g., Phuket, Nha Trang, Boracay, Bali Ubud)	Need aesthetic, cultural-friendly facilities; passenger charging demand	Custom Batik/southeast Asian motif silk screen + tempered glass screens + fast-charging seats	Enhanced city image; 50% higher passenger comfort; additional branded customization revenue
Coastal Commercial Districts (e.g., Singapore, Kuala Lumpur, Penang, Manila)	Salt spray corrosion; storm damage; security risks	Galvanized steel anti-rust structure + 10+ wind resistance	Corrosion-free operation for 5+ years; storm-proof stability; real-time safety monitoring; 20% reduced maintenance; low maintenance bus shelter Southeast Asia

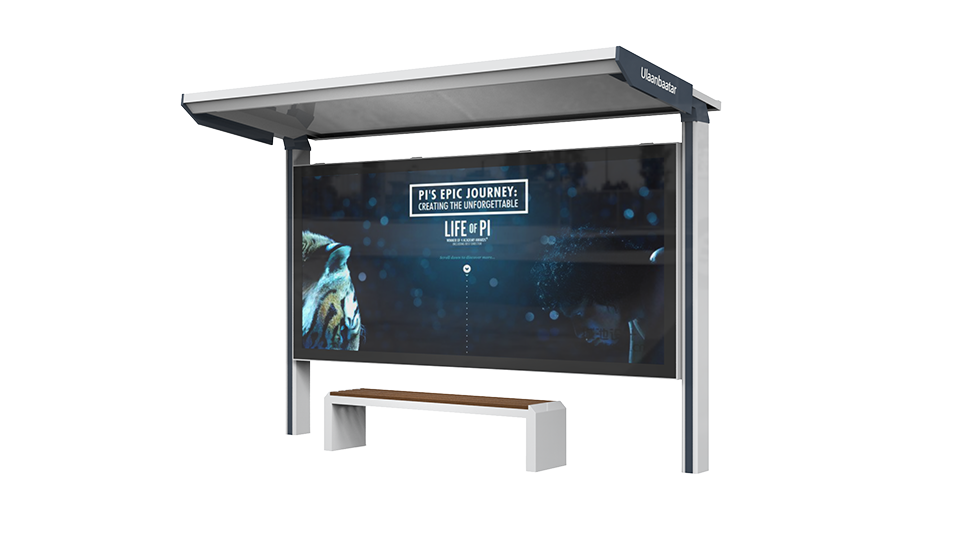

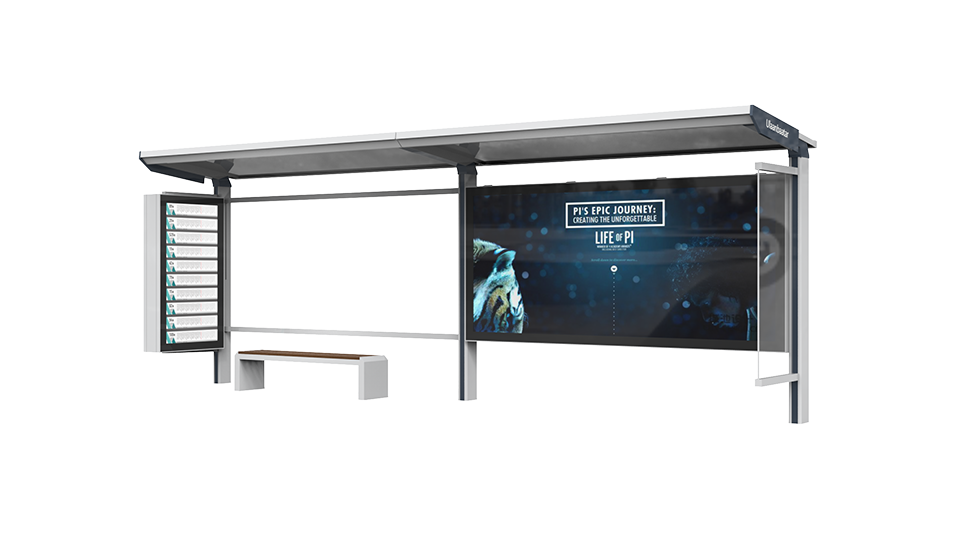

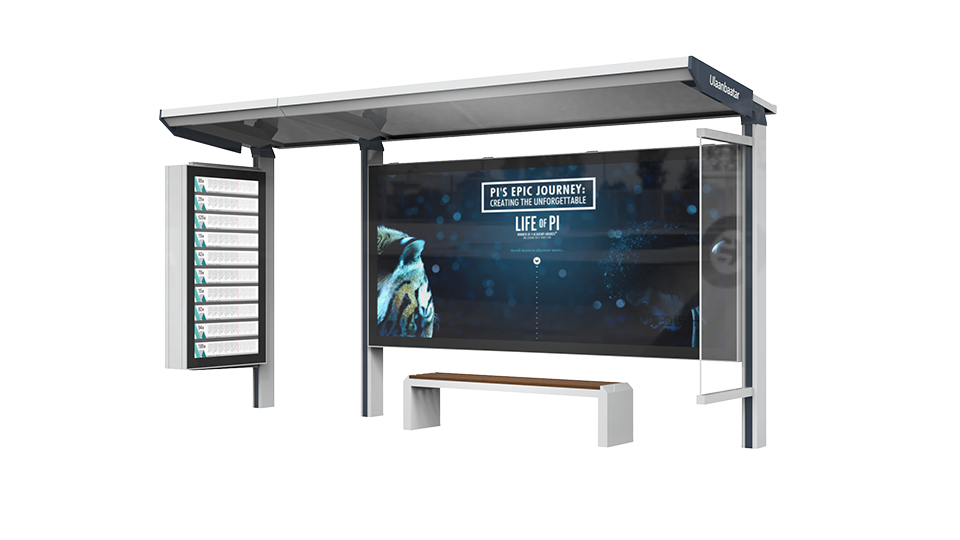

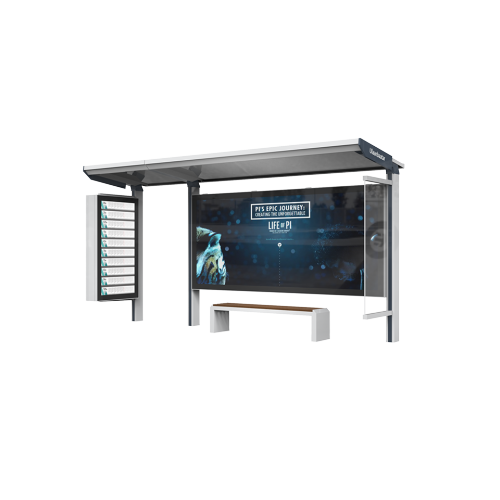

3. Product Introduction

Core Specifications (Southeast Asia-Adapted)

Dimensions: 6460mm (L) × 1750mm (W) × 2700mm (H) – adjustable length for narrow urban roads or wide rural stops

Main Material: Galvanized steel (anti-rust, anti-coastal salt spray) + tempered glass (impact-resistant, easy to clean in high humidity)

Installation Method: Foundation embedding – stable for uneven rural terrain in Southeast Asia

Structure & Protection (Tropical Climate-Proof)

Protection Grade: IP54+ – effective dustproof and waterproof for prolonged monsoon seasons in Thailand, Indonesia, and Vietnam; monsoon-resistant transit facility

Wind Resistance Grade: 10+ – withstands strong storms in coastal Southeast Asia (Philippines, Malaysia)

Functional Modules (Local Demand-Oriented)

Advertising Light Box: 3500×1600mm – energy-saving, high-brightness, Toncom Solar bus shelter with advertising light box ideal for commercial monetization in high-traffic ASEAN areas

Station Board Light Box: 1200×1800mm – clear day-night display for dim rural stops in Southeast Asia

Seats: Corrosion-resistant wood – no deformation in Southeast Asia’s high humidity; easy maintenance

Screens: Tempered glass – customizable with local cultural elements (Buddhist motifs, Batik patterns)

Solar System (Tropical-Optimized, Technical-Enhanced)

Our solar-lithium battery technical solution is engineered for Southeast Asia’s intense sunlight and power instability, with industry-leading efficiency and reliability:

(1) Photovoltaic Grid-Tie & Energy Storage Integrated Terminal (Model: HP3452)

Mains Input: 190~240VAC 50/60Hz, Charging Current: 0A-60A adjustable, Inverter Rated Power: 3500W

PV Control: MPPT Voltage Range 85-400VDC, PV Max Power: 4000W, PV Max Input Current: 13A, PV Max Efficiency: ≥99.5%

Battery Operation: 43.2V-60.0VDC, Max Battery Charging Current: 60A

(2) Solar Panel Configuration

Semi-Flexible Thin-Film Solar Panels: ETFE low-reflectance film + Class A cells, Rated Power: 300W, Output Voltage Range: 0-18V, Peak Current: 16.67A, Light-to-Energy Conversion Efficiency: ≥20%

System Configuration: 18V 300W solar panels, ensuring optimal energy capture in tropical sunlight

(3) Lithium Iron Phosphate Battery Pack

Standard Capacity: 51.2V 150Ah, Standard Continuous Charge/Discharge Current: 0-60A (Max Continuous Discharge Current: 60A)

Load Capacity: ≤3500W, Overcharge Protection Voltage: 58.4V, Overdischarge Protection Voltage: 51.2V

Local Compliance & Certification

International certifications: CE/UL/RoHS

Support: Full customs clearance documents – ensure quick import to Southeast Asian countries

Industry Partnerships (Authoritative Endorsement)

Partnered with Southeast Asia Public Transport Association and selected as a preferred supplier for Jakarta Smart City Project 2024.

Delivery Cycle (Southeast Asia-Focused)

Production: 30-45 days

Sea freight to Southeast Asia ports (Singapore, Klang, Jakarta): 7-14 days

Customs clearance support: 3-5 days (full document package provided)

4. Customization Services (Southeast Asia-Tailored)

(1) Appearance Customization

Length adjustment: Adapt to Jakarta’s narrow roads or Bali’s wide rural stops

Silk screen printing: Local brand logos, Batik patterns (Indonesia), Buddhist motifs (Thailand), or public service messages

Color selection: RAL color card options – match Singapore/Kuala Lumpur urban planning themes

(2) Function Expansion (ASEAN Market Demand, High Foot Traffic-Adapted)

Smart functions: Intelligent station announcement, multi-language voice broadcast (Bahasa Indonesia, Thai, Vietnamese, English), fast-charging seats

Security functions: HD surveillance system + real-time remote monitoring (designed for high foot traffic in Southeast Asia)

Energy optimization: Solar system customization – adjusted for sunlight intensity in Malaysia, Indonesia, Thailand, etc. (e.g., panel quantity, battery capacity based on local solar irradiance)

5. Customer Testimonials & Local Pilot Projects

Customer Testimonials (Southeast Asia Clients)

"We deployed Toncom’s solar-powered shelters in 5 rural Malaysian areas. The off-grid design solved our power shortage perfectly. Maintenance costs are 25% lower than traditional shelters!"

— John Tan, Procurement Manager of Malaysia Public Works Department

"Toncom’s products upgraded 20 Bangkok bus stops. The Batik-customized advertising boxes brought 40% more ad revenue. Passenger satisfaction jumped 35% thanks to charging seats. Highly recommended for Southeast Asian urban projects!"

— Suriya Wong, Operation Director of Bangkok Transit Co., Ltd.

6. After-Sales Guarantee (Southeast Asia Local Support)

Quality Warranty: 3-year warranty for steel structure (anti-corrosion adapted to Southeast Asia); 1-year warranty for electrical components. Our 3-year steel structure warranty ensures low maintenance costs for tropical bus shelters in Southeast Asia.

Technical Support: 24/7 online guidance; local certified technical teams in Singapore and Kuala Lumpur with 50+ Southeast Asia project maintenance experiences (48-hour on-site response for Southeast Asia projects)

Spare Parts Supply: Local warehouses in Singapore and Jakarta – 3-working-day delivery for Southeast Asia clients, minimizing downtime (including HP3452 terminals, 300W solar panels, and 51.2V 150Ah battery packs)

Custom Maintenance: Tailored schedules (e.g., anti-salt spray inspection for coastal Southeast Asia; monsoon pre-maintenance focusing on solar panel cleaning and battery health check)

To create a livable, convenient and orderly urban space, a complete set of urban supporting facilities is essential — including Intelligent Traffic Facilities like bus shelters and Guardrails that guarantee smooth and safe travel, Commercial Service Facilities such as outdoor dining cars, Kiosks and public Seating that meet citizens’ daily life and leisure needs, as well as Urban Sanitation Facilities consisting of Public Toilets and Trash Bins that uphold urban cleanliness and environmental order.

Looking for a Reliable Manufacturer of smart urban infrastructure in China ? Toncom would be your best partner. Contact us for Custom Solutions to Build a Livable City!

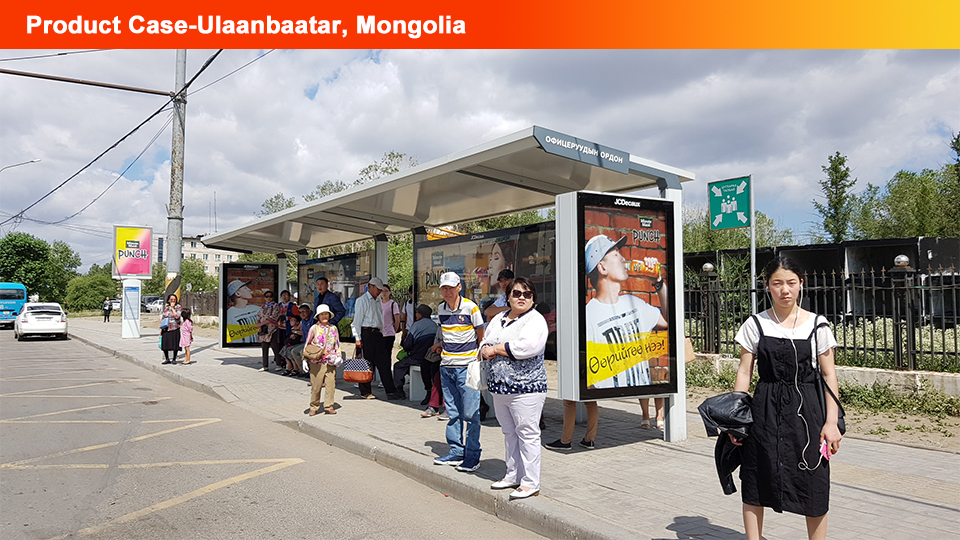

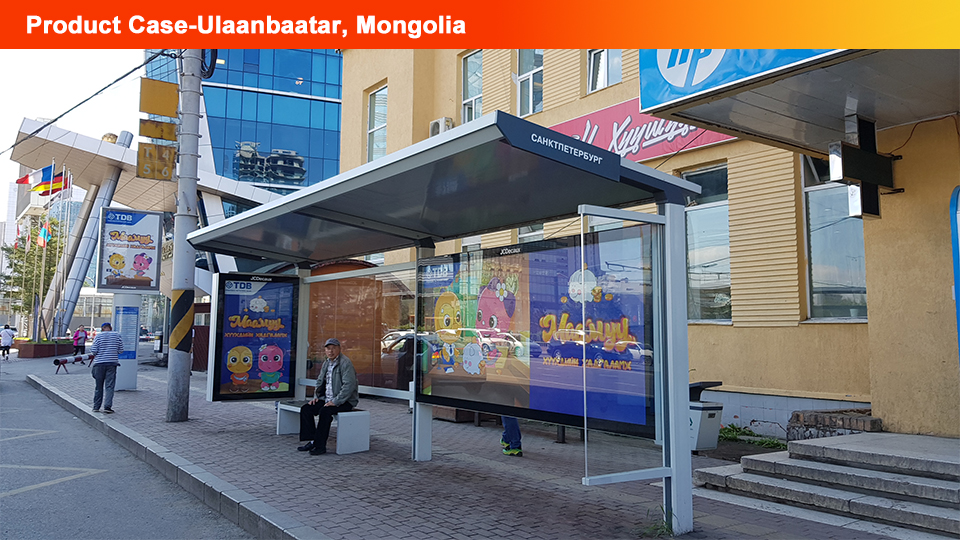

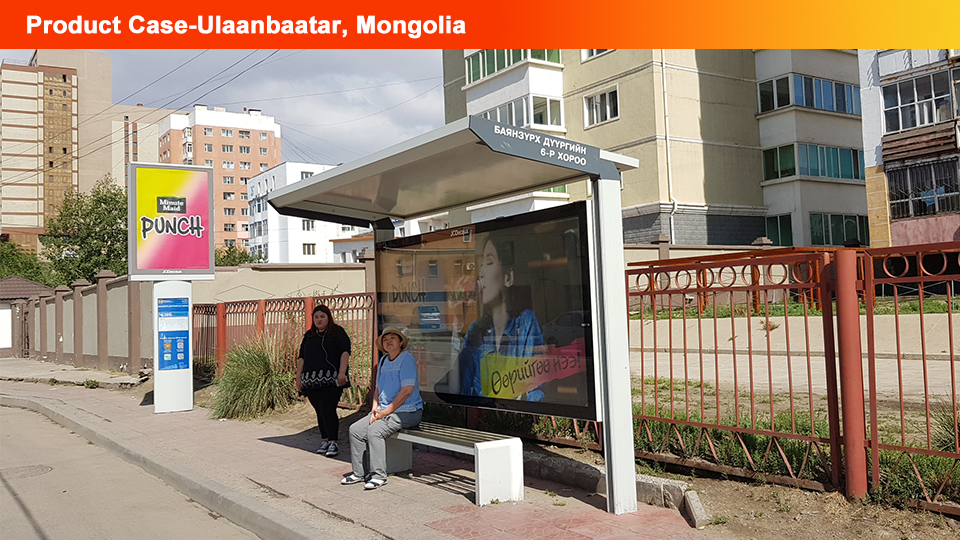

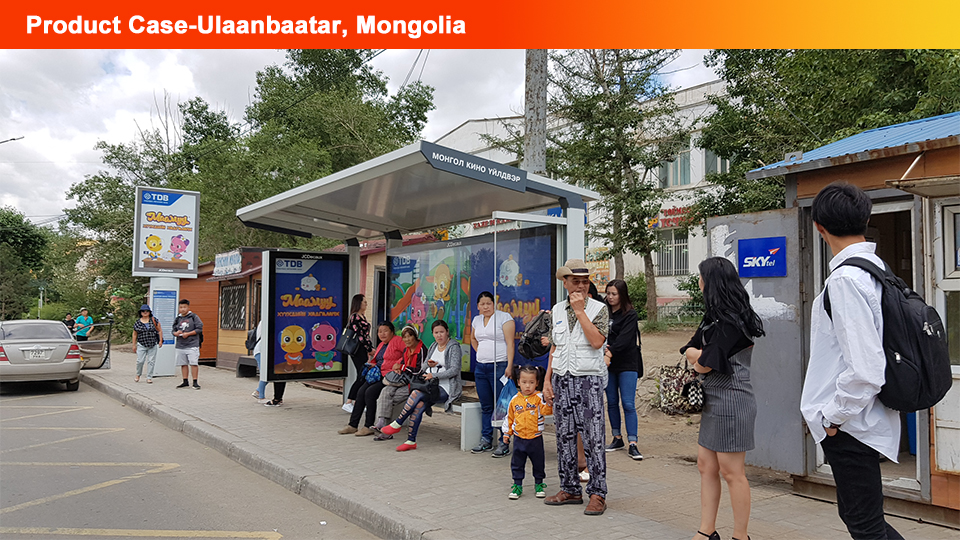

Toncom Bus Shelter Overseas Cases
