Product Description

Product Attributes

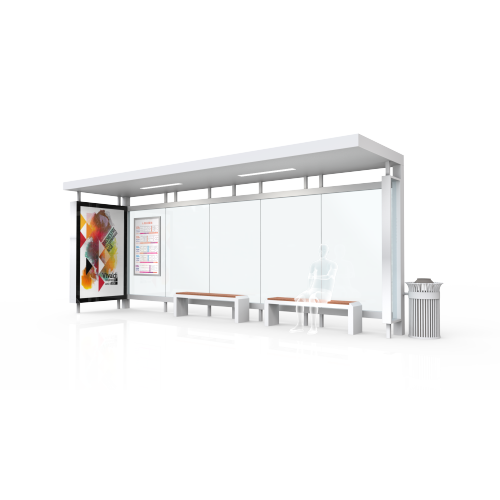

Model No.: THC-222

Brand: Toncom

Place Of Origin: China

Overall Dimension: 6000*1800*2500mm

Main Material: Galvanized Steel Plate/Tempered Glass

Installation Method: Need foundation embedding

Protection Grade: IP54 and above (dustproof and waterproof)

Wind Resistance Grade: Grade 10 and above (suitable for outdoor environment)

Light Box: Stop Sign Light Box 1200*1800mm

Seat: Anticorrosive Wood Seat

Screen: Tempered Glass

Trash Can: Trash Can

Voice Broadcast: TTS Voice Reminder

Intelligent Monitoring: High-definition Camera

Additional Function: USB Charging

Remote Management: Support Cloud Data Collection, Remote Control/Maintenance

International Certification: CE/UL/RoHS

Appearance Customization: Customizable length, silk screen, color (RAL color card optional), etc.

Function Expansion: Can provide intelligent station reporting, voice station reporting, charging socket, monitoring system, solar system and other function customization

Production Cycle: 30~45 days

Warranty Period: 3 years for steel structure components, 1 year for electrical components

Station Reporting Display System: E-ink screen (e-paper)

Packaging & Delivery

Selling Units	:	set

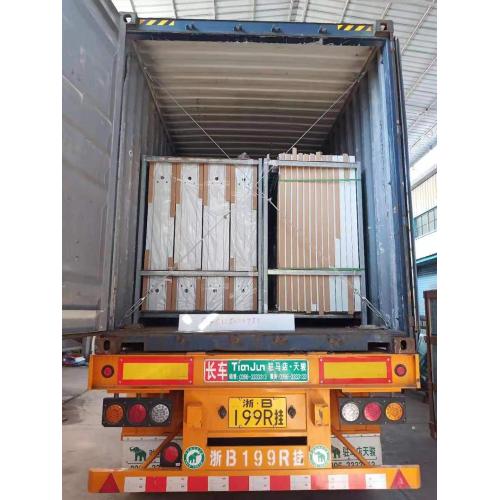

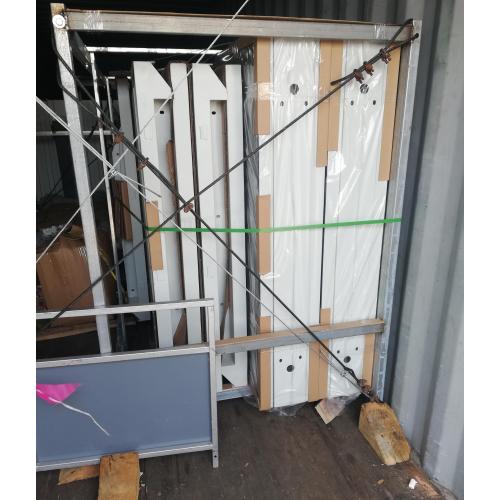

Package Type	:	Pallet, Metal rack with rubber for touching, PE film wraping, EPE foam and wooden box.
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Toncom Solar-Powered Smart Bus Shelter: Tailored B2B Solution for South Africa & Nigeria

1. Solving Local Pain Points: Targeting South Africa & Nigeria’s Core Transit Challenges

Public transit in both markets grapples with region-specific hurdles that hinder efficiency and service quality:

South Africa: Frequent load shedding and grid outages disrupt electronic signage, lighting, and passenger services; high grid electricity costs burden municipal budgets.

Nigeria: Unstable grid power paired with skyrocketing diesel generator costs and price volatility (a common backup solution); rural areas lack basic smart transit infrastructure, widening urban-rural service gaps.

Toncom’s solar-powered smart bus shelter is purpose-built to resolve these issues—a self-sufficient, cost-effective, and future-ready solution tailored for your market.

2. Application Scenarios & Pain Point Solutions

We offer scenario-specific solutions tailored to the diverse public transit needs of South Africa and Nigeria, addressing localized pain points with targeted technologies and designs.

(1) For urban core bus stops such as those in Johannesburg CBD and Lagos Island, the primary challenges lie in high grid electricity costs and frequent service disruptions caused by load shedding (South Africa) and grid outages (Nigeria). Our response combines a high-efficiency solar-powered system, intelligent energy management technology, and real-time remote monitoring. This integrated solution not only cuts operational costs by 25% but also ensures 99.9% uptime for smart devices like electronic signage and passenger information systems, perfectly aligning with municipal governments’ cost-reduction and service-stability goals.

(2) In suburban and rural bus stops—including rural areas of KwaZulu-Natal in South Africa and northern Nigeria—limited or no grid access and overreliance on costly, price-volatile diesel generators are the key pain points. To resolve these issues, we’ve developed an off-grid solar system paired with a modular design that enables easy installation without extensive infrastructure upgrades. The result is complete independence from both grids and diesel, extending smart transit services to underserved communities. Each unit delivers annual savings of $1,200 or more compared to diesel-powered alternatives, making sustainable transit accessible even in remote regions.

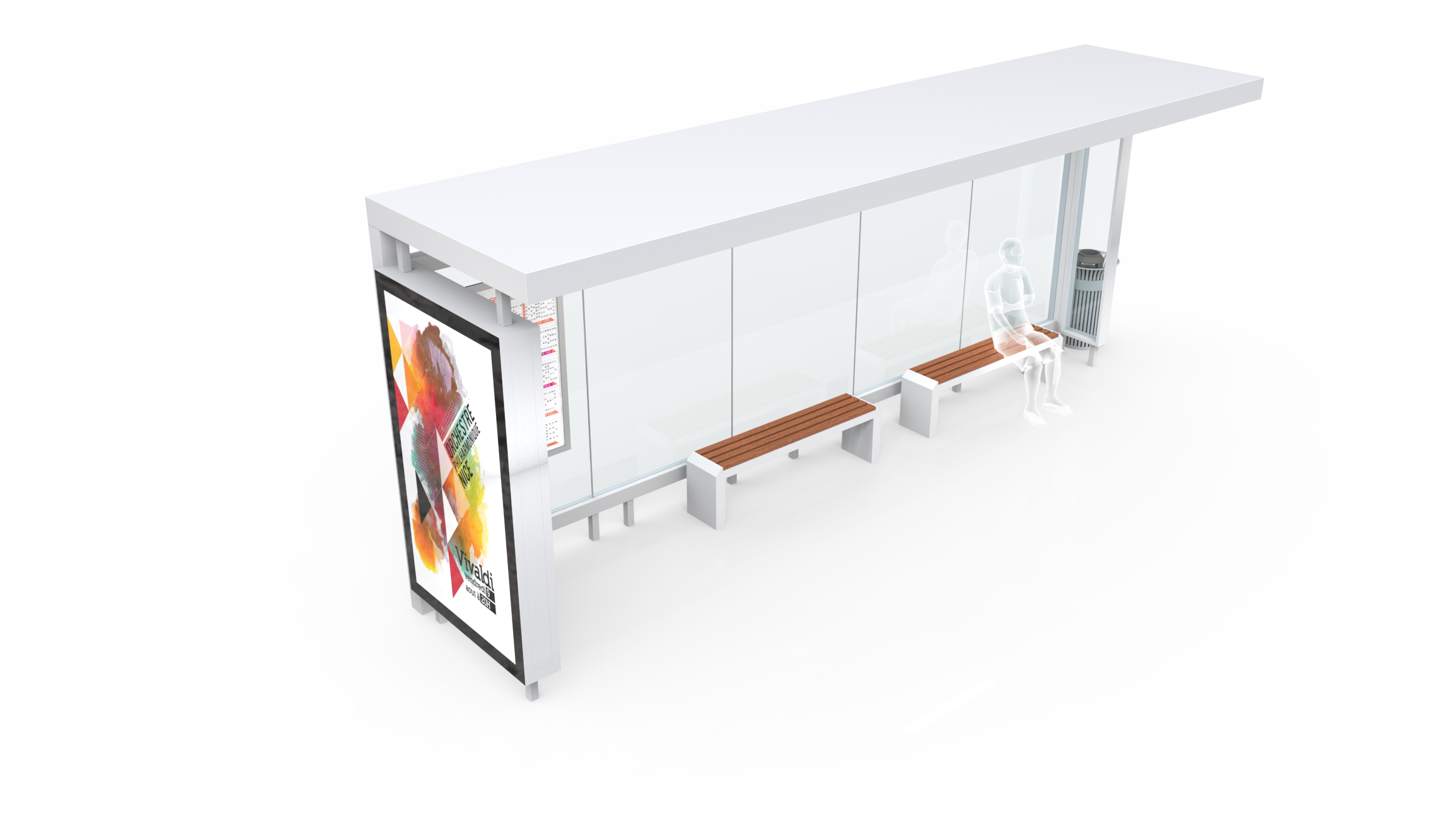

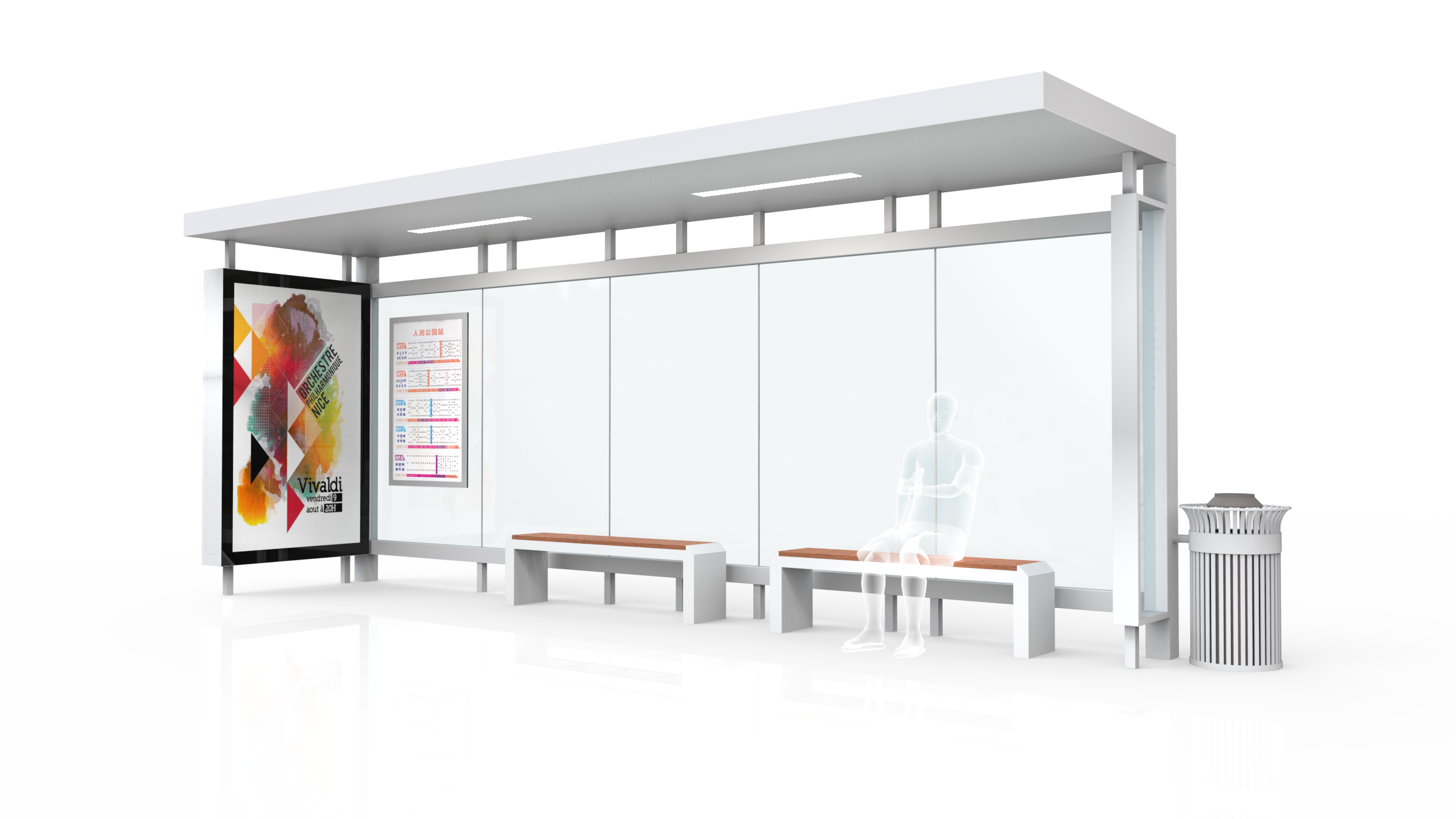

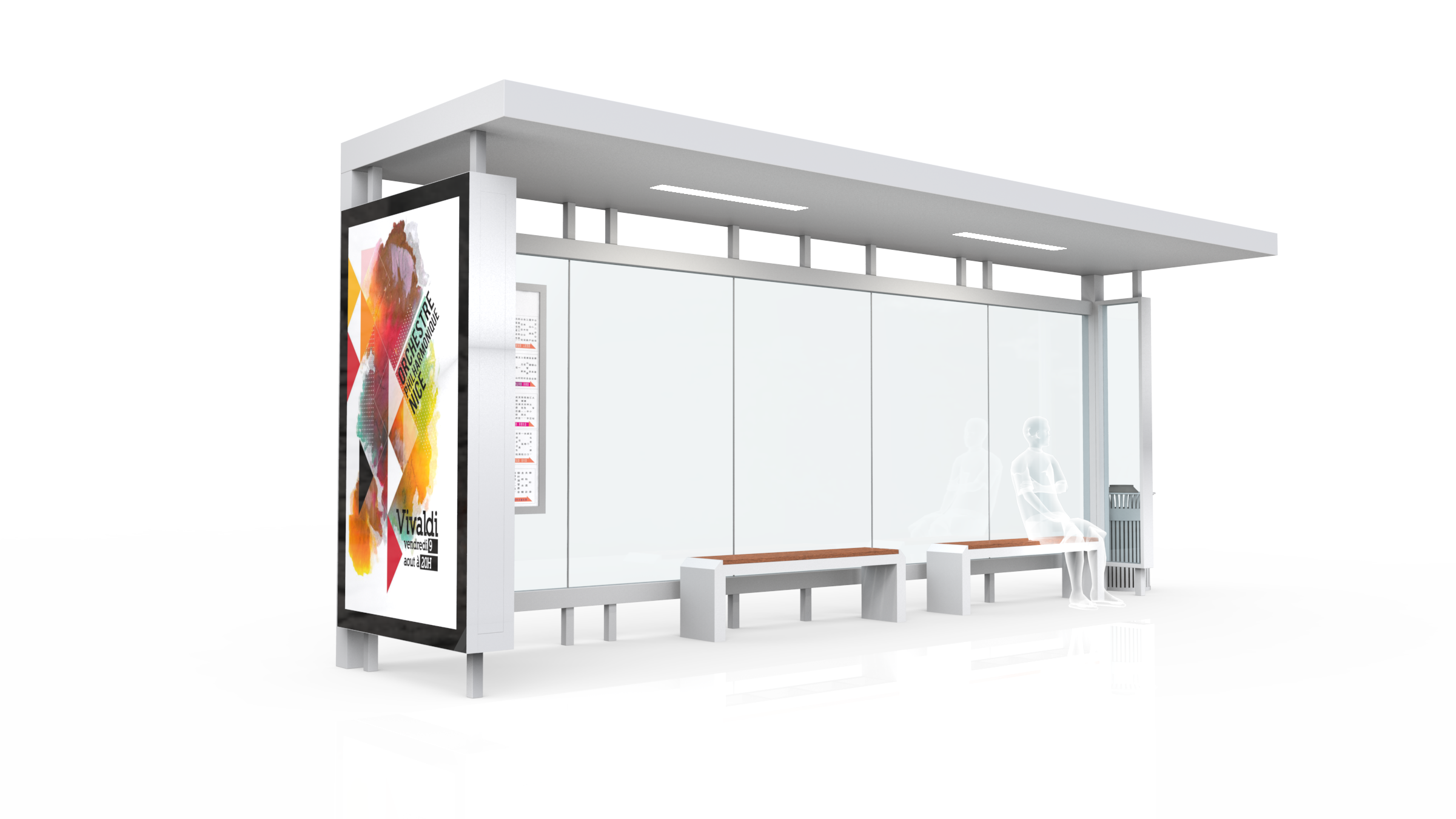

3. Product Deep Dive: THC-222 Solar-Powered Smart Bus Shelter

3.1 Basic Specifications

Material: Galvanized Steel (rust-resistant for Lagos’ coastal humidity) + Tempered Glass (shock-proof for high-traffic urban areas)

Installation: Foundation Embedding (ensures stability in Johannesburg’s uneven terrains and Nigeria’s loose soil conditions)

3.2 Structure & Protection

IP Rating: IP54+ (Dust & Water Resistance) – optimized for South Africa’s arid heatwaves and Nigeria’s heavy rainy seasons.

Wind Resistance: Grade 10+ – withstands extreme weather events like Johannesburg’s strong gusts and coastal storms in Nigeria.

3.3 Functional Modules

Bus Stop Lightbox: 1200*1800mm (ideal for route displays, local business ads, and public safety notices in cities like Cape Town or Abuja).

Seating: Anti-corrosion Wooden Seats (delivers long-lasting comfort for daily commuters in high-temperature environments).

3.4 Solar Power System: Energy Independence for African Markets

Custom-engineered for regional climate conditions, our solar solution eliminates reliance on unstable grids and costly generators:

Solar Panels: 18V 300W semi-flexible thin-film panels (≥20% light-to-electricity conversion efficiency—performs reliably in Nigeria’s low-light rainy seasons).

Energy Storage: Lithium Iron Phosphate Battery Pack (51.2V 150Ah) – provides 72+ hours of continuous power with just 4 hours of daily sunlight (adapts to variable weather patterns).

Inverter & Controller: HP3452 integrated terminal (3500W rated inversion power, MPPT voltage range 85-400VDC—optimizes energy capture even in partial shading from trees or buildings).

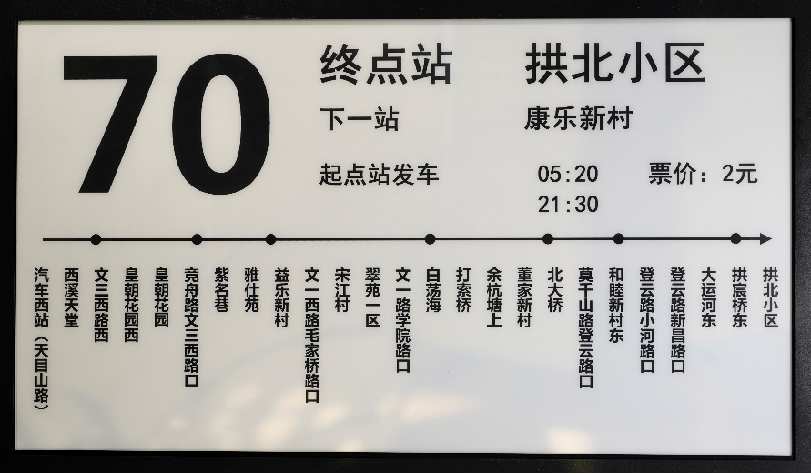

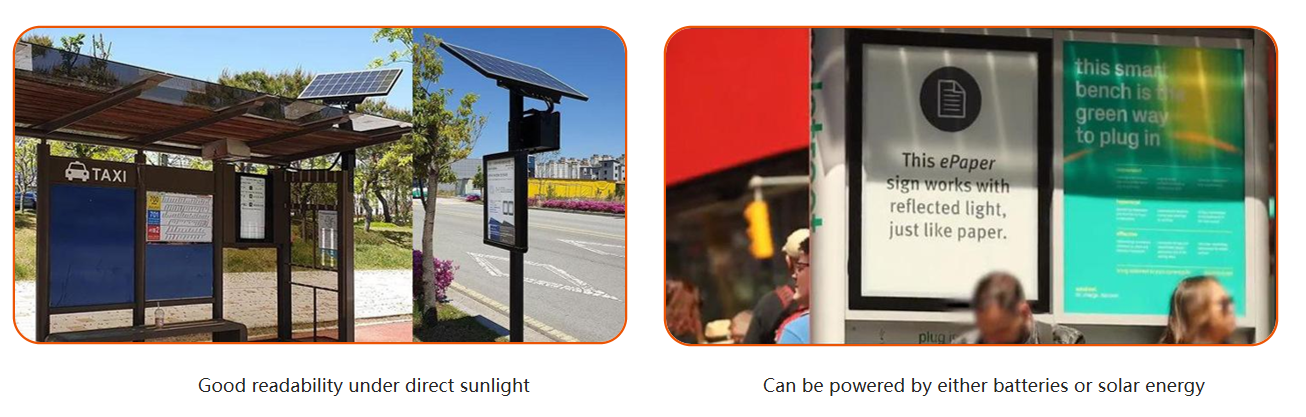

3.5 E-ink screen (e-paper)

E-ink screen (e-paper) is highly energy-efficient and suitable for use in Africa.Advantages:

The e-paper display module adopts bistable technology. When the screen is not updated, it consumes almost no power, saving up to 97% of electricity compared to traditional liquid crystal displays.

It can continue to display content on the screen even when the power supply is completely disconnected.

The display module uses a reflective screen, so the displayed image remains clear even under strong outdoor sunlight. In addition, at night, the visibility can be improved through a front light guide plate.

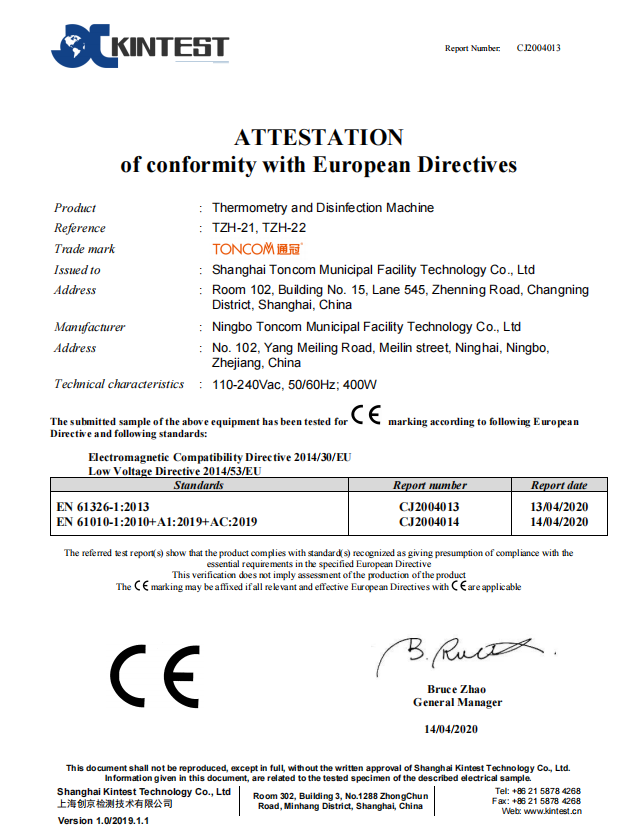

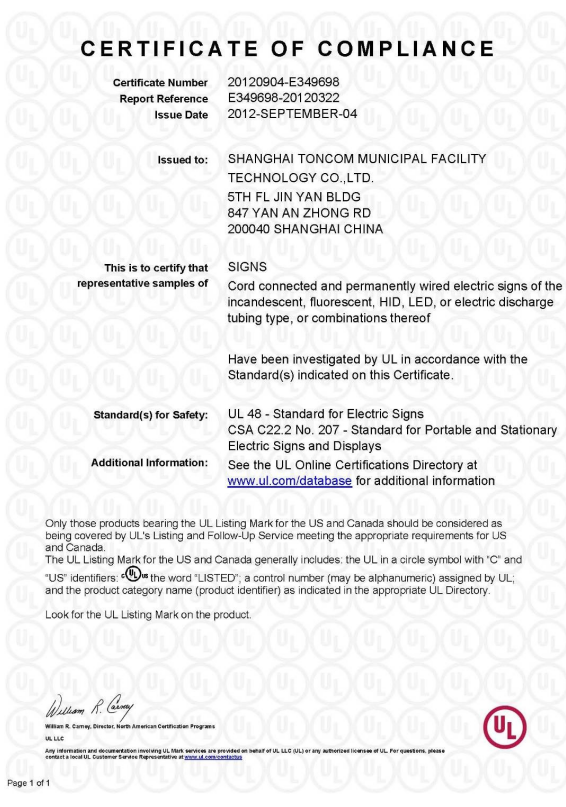

3.6 Certifications & Quality Compliance

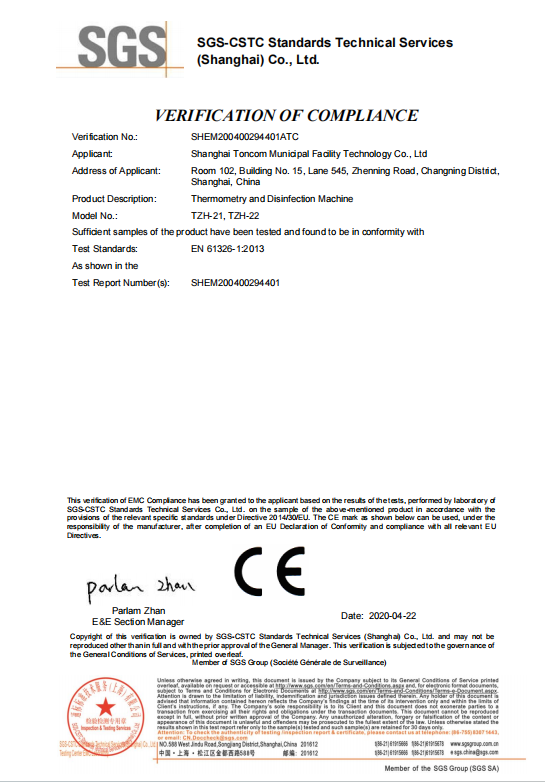

International Certifications: CE, UL, RoHS – meets global quality and safety standards.

3.7 Production & After-Sales

Lead Time: 30-45 days

Warranty: 3 years for steel structures, 1 year for electrical components – backed by dedicated local service teams.

4. Customization Services

Toncom Off-grid smart bus shelter for municipal procurement offers end-to-end customization to match your project’s unique requirements:

Aesthetic Customization:

Length adjustment (flexible to local space constraints, e.g., narrow urban streets or wide rural transit hubs).

Silk-screen printing with your municipal logo, brand identity, or local cultural elements (e.g., South African Ndebele patterns or Nigerian Yoruba motifs).

RAL color chart selection (align with city branding or regional aesthetic preferences).

Functional Customization:

Smart Announcement Systems (supports local languages including Zulu, Xhosa, Yoruba, and Hausa).

USB/Type-C Charging Seats (meets commuters’ mobile power needs in areas with limited access to electricity).

24/7 Surveillance & IoT Sensors (enhance public safety and provide operational insights for transit management).

Energy System Customization:

Scalable solar panel capacity (300W-1000W options for high-power demand scenarios like multi-device smart hubs).

Battery storage expansion (up to 51.2V 300Ah for extreme off-grid rural areas with prolonged cloudy weather).

5. Procurement Process: Transparent & Efficient

We streamline the B2B procurement journey to minimize uncertainty and ensure smooth project delivery:

Demand Consultation: Our local team assesses your specific needs (location, budget, functional requirements).

Custom Solution Design: Develop tailored plans with 3D renderings and technical specifications.

Prototype Confirmation: Finalize design details and material selections before mass production.

Mass Production: 30-45 day manufacturing cycle with regular progress updates.

Shipping & Clearance: Handled by our logistics partners with expertise in South African/Nigerian import regulations.

Local Installation: Professional on-site setup by certified technicians.

After-Sales Support: 24/7 technical assistance and scheduled maintenance checks.

6. Core Advantages for B2B Buyers in South Africa & Nigeria

6.1 Sustainable Energy & Environmental Leadership

Harness clean solar energy to reduce carbon emissions – align with South Africa’s Renewable Energy Policy and Nigeria’s National Urban Renewal Policy 2021.

Eliminate grid/diesel reliance: Power electronic signage, lighting, and IoT devices 24/7, even during load shedding or outages.

6.2 Seamless Installation & Upgrade Capability

Compact solar integration transforms traditional bus stops into smart nodes in 72 hours or less – no large-scale infrastructure overhauls needed.

Rural-ready: Deploy in underserved areas to bridge the urban-rural transit divide.

6.3 Local Scene Adaptability

Climate-Resilient Design: IP54 protection withstands Lagos’ humid rains; wind-resistant build tackles Johannesburg’s gusts and coastal storms.

Urban-Rural Versatility: Proven in high-density cities and remote rural zones with limited infrastructure.

6.4 Technical Reliability & Operational Efficiency

Intelligent Energy Management: Battery storage and smart systems optimize energy allocation – reduce operational costs by 25% vs. grid/diesel-powered hubs.

Remote Monitoring: Real-time performance tracking, data analytics, and remote maintenance via IoT – minimize downtime and on-site visits.

For South Africa and Nigeria’s B2B procurement leaders, Toncom’s solar-powered smart bus shelter is more than a product—it’s a strategic investment in sustainable, efficient, and inclusive public transit.

To create a livable, convenient and orderly urban space, a complete set of urban supporting facilities is essential — including Intelligent Traffic Facilities like bus shelters and Guardrails that guarantee smooth and safe travel, Commercial Service Facilities such as outdoor dining cars, Kiosks and public seating that meet citizens’ daily life and leisure needs, as well as Urban Sanitation Facilities consisting of Public Toilets and Trash Bins that uphold urban cleanliness and environmental order.
