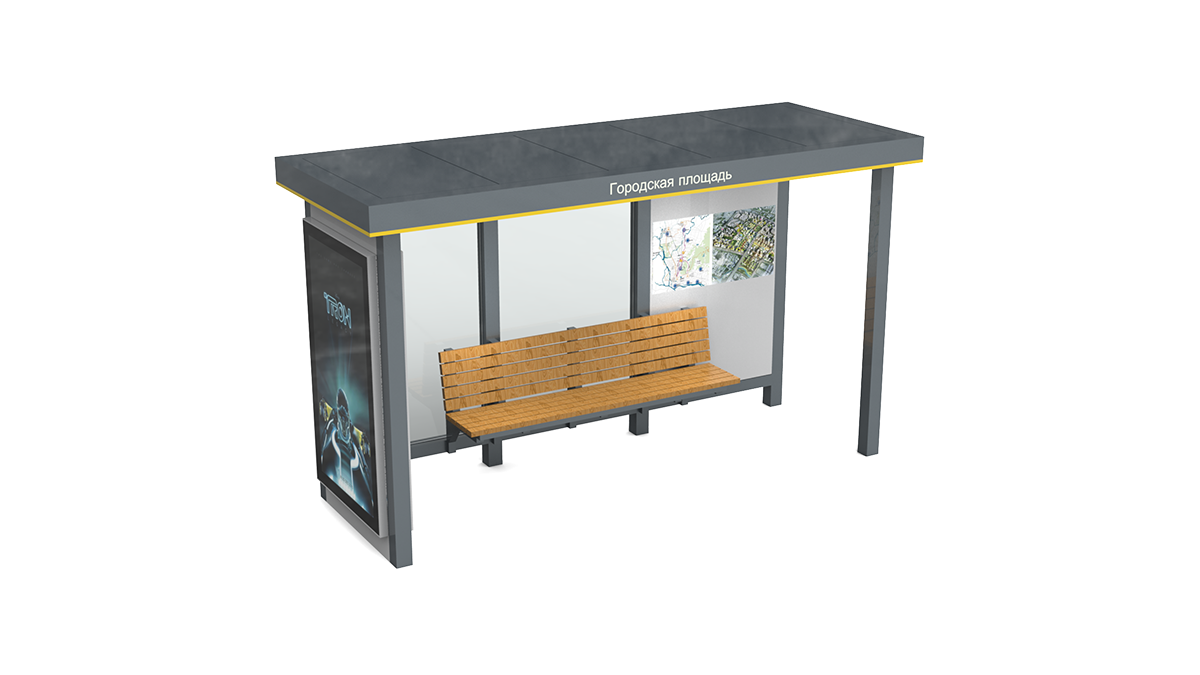

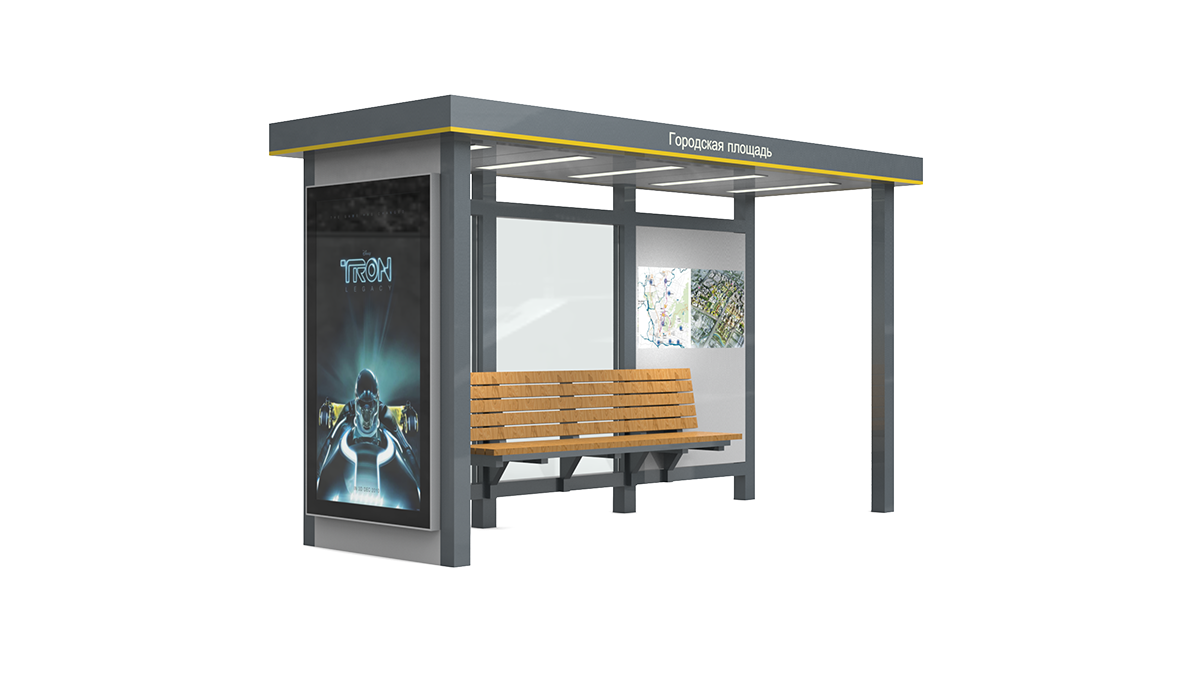

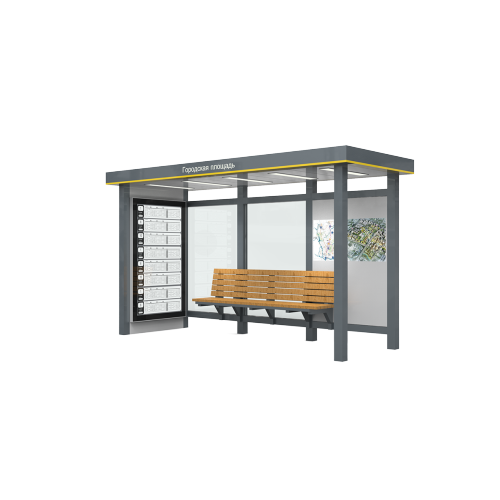

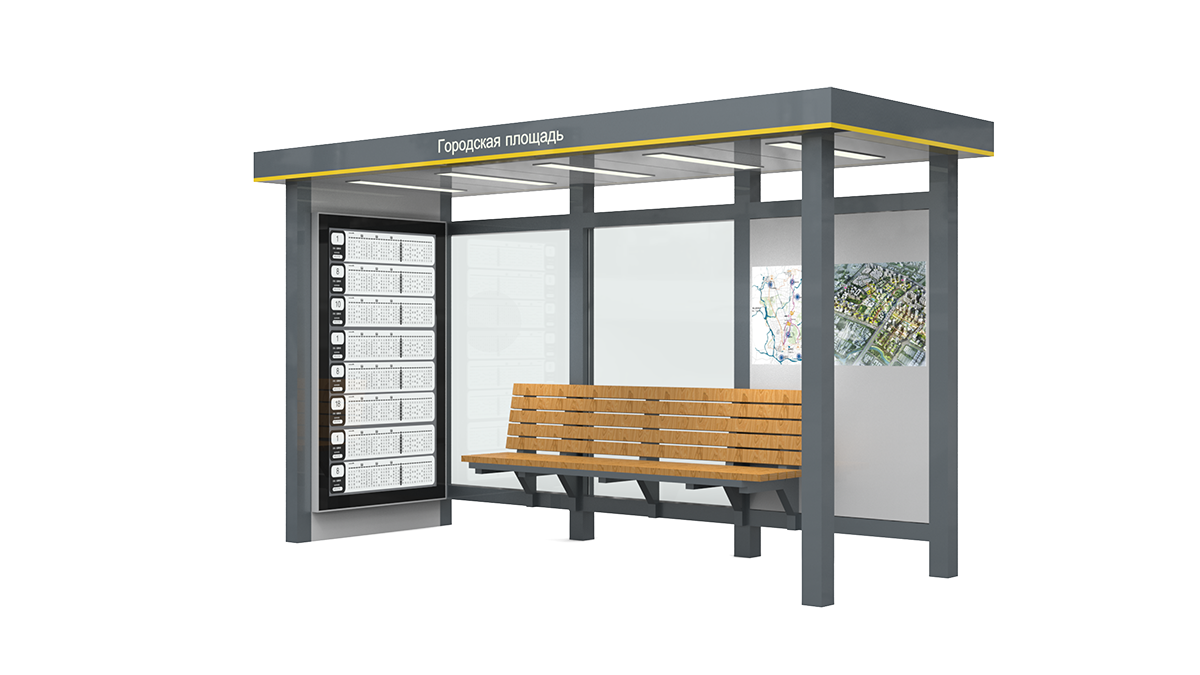

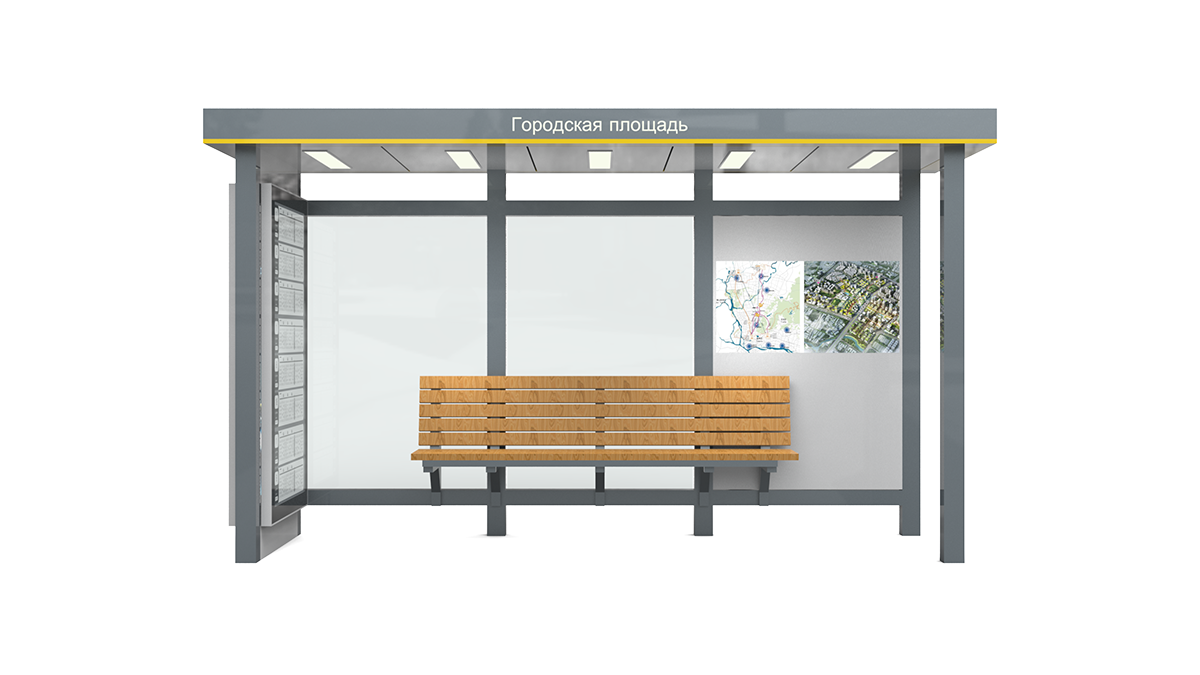

Custom-made smart bus shelter for Singapore urban transit

Custom-made smart bus shelter for Singapore urban transit

Get Latest Price

Payment Type:	L/C,Western Union,D/P,D/A,T/T,MoneyGram
Transportation:	Air,Ocean
Port:	ningbo

Contact Now

Product Description

Product Attributes

Model No.: THC-268

Brand: Toncom

Place Of Origin: China

International Certification: CE/UL/RoHS

Appearance Customization: Customizable length, silk screen, color (RAL color card optional), etc.

Function Expansion: Can provide intelligent station reporting, voice station reporting, charging socket, monitoring system, solar system and other function customization

Production Cycle: 30~45 days

Warranty Period: 3 years for steel structure components, 1 year for electrical components

Overall Dimension: 4200*1450*2600mm

Main Material: Galvanized Steel Plate/Tempered Glass

Installation Method: Need foundation embedding

Protection Grade: IP54 and above (dustproof and waterproof)

Wind Resistance Grade: Grade 10 and above (suitable for outdoor environment)

Light Box: Stop Sign Light Box 1200*1800mm

Seat: Anticorrosive Wood Seat

Lighting: LED Light

Packaging & Delivery

Selling Units	:	set
Package Type	:	Pallet, Metal rack with rubber for touching, PE film wraping, EPE foam and wooden box.
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

Toncom THC-268 Solar-Powered Smart Bus Shelter: LTA Compliant Solution for Singapore B2B Buyers

For B2B buyers in Singapore’s public transit, urban planning, and infrastructure sectors, a high-quality bus shelter is more than a passenger waiting space—it’s a long-term investment in operational efficiency, climate resilience, and urban sustainability.

1. Localized Adaptation: Built for Singapore’s Climate & Urban Context

Singapore’s hot and humid climate, frequent rainfall, and coastal salt mist require infrastructure that prioritizes durability and weather resistance. Our Smart Public Transit Shelter can thrive in these conditions:

- Anti-Corrosion Enhancement: Galvanized steel frame undergoes 120-hour salt spray testing (exceeding industry standards) to prevent rust from coastal humidity and rain.

- Heat Reduction Design: Tempered glass screens feature UV-blocking coating (blocks 90% of UV rays) to keep the shelter interior cool, reducing reliance on lighting/ventilation energy.

- Drainage Optimization: Sloped roof with hidden drainage channels prevents waterlogging during heavy downpours—critical for Singapore’s monsoon seasons.

2. Core Specifications & Structural Reliability

Parameter	Details	Product Value
Model	THC-268	Standardized model with proven production quality
Dimensions	420014502600mm	Optimized for Singapore’s urban sidewalks & transit hubs
Main Material	2.0mm Galvanized Steel + 8mm Tempered Glass	High load-bearing capacity & impact resistance (10x stronger than regular glass) for durable solar-powered bus shelter structures
Protection Grade	IP54+	Dust/waterproof to ensure electrical components of weatherproof bus shelter Singapore work reliably
Wind Resistance	Grade 10+	Withstands winds up to 24.5-28.4m/s, ideal for coastal weatherproof bus shelter in Singapore

3. Functional Modules: Passenger-Centric & Low-Maintenance

1200*1800mm Light Box

High-brightness LED backlight (5000K daylight white) ensures route information is visible even in direct sunlight. UV-resistant PC panel prevents yellowing for 5+ years.

Anti-Corrosion Wooden Seats

Made of FSC-certified teak wood with anti-mold treatment. Ergonomic curved design reduces passenger fatigue during peak-hour waits.

Smart Lighting System

Motion-sensor LED lights (150lm/W) auto-adjust brightness—saves 30% energy vs. traditional lighting. 50,000-hour lifespan (low replacement cost).

4. Solar-Powered Bus Shelter Package: Align with Singapore’s Green Goals

Singapore’s Green Plan 2030 mandates 30% of public infrastructure to use renewable energy by 2030. Our solar package helps you meet this target.

- Solar Panels: 18V 320W monocrystalline panels (22% conversion efficiency) – performs well in Singapore’s sunny weather (avg. 5-6 hours of daily sunlight).

- Battery Storage: 51.2V 200Ah LiFePO4 battery (10-year lifespan, 2000+ charge cycles) – powers lighting/USB charging for 72 hours without sunlight.

- Smart Controller: MPPT 100A controller with remote monitoring (via app) – track energy generation/usage in real time.

5. Customization & Project Support

We understand B2B projects have unique requirements—our team offers end-to-end customization:

- Design Customization: Adjust length (3000-6000mm), add brand logos (silk-screen/UV printing), or choose RAL colors (e.g., RAL 5010 blue for LTA-aligned projects).

- Smart Add-Ons: Integrate E-paper displays (real-time bus tracking), USB-C charging ports (15W fast charge), or AI surveillance cameras (motion detection + facial recognition).

- Installation Support: Provide detailed foundation drawings, on-site technical (2-3 days per shelter), and training for your maintenance team.

6. Compliance, Production & After-Sales for Singapore Bus Shelter Projects

- Certifications: CE/UL/RoHS + ISO 9001 quality management system – fully LTA compliant bus shelter meeting Singapore’s IMDA regulatory requirements

- Lead Time: 30-45 days (rush orders available for urgent projects).

- Warranty & Maintenance: 3-year warranty for steel structures, 1-year for electrical parts. Optional annual maintenance contract (includes cleaning, component check, and battery calibration).

As a leading manufacturer of smart urban infrastructure in China, we provide comprehensive solutions covering three key areas:

Intelligent Traffic Facilities: Bus Shelter, Guardrails

Commercial Service Facilities: Outdoor Dining Car, Kiosks , Public Seating

Urban Sanitation Facilities: Public Toilets, Trash Bins

Contact us, and we will customize a suitable solution for you based on your specific needs (such as budget, functions, and design style).
